Advanced XYZ Axis Welding Robot for Mobile Phone Assembly with High Precision

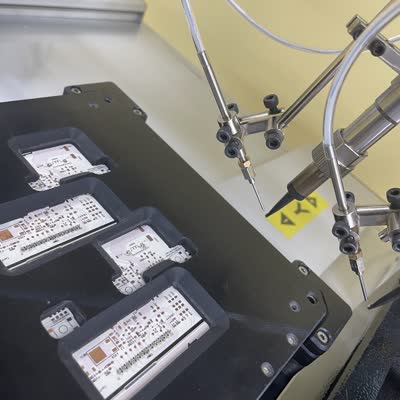

Modern mobile phone assembly demands extreme precision and motion flexibility, especially for soldering tiny components like flex cables, connectors, and chips in compact device interiors. The advanced XYZ axis welding robot for mobile phone assembly with high precision meets this critical need, integrating the multi-directional flexibility ofXYZ axis motion, high precision control, and advanced robotic technology to deliver consistent, reliable soldering results for smartphones, foldables, and wearable devices.
XYZ Axis Motion: Flexible Access for Complex Mobile Components
The XYZ axis motion system is the foundation of the robot’s adaptability in mobile phone assembly. Unlike single or dual-axis equipment, it enables three-dimensional linear movement, allowing the robotic arm to easily access hidden or angled solder points—such as the inner joints of foldable phone hinges or the bottom of USB-C connectors. The system’s smooth motion control and adjustable speed (0.3–5mm/s) ensure gentle operation, avoiding damage to fragile mobile components like OLED screens or thin PCB substrates. For complex mobile PCB layouts with dense component arrays, the XYZ axis system navigates precisely between components, eliminating interference and ensuring each solder joint is targeted accurately.
High Precision: Consistent Quality for Tiny Solder Joints
The high precision capability of the robot is non-negotiable for mobile phone assembly, where solder pads can be as small as 0.15mm. With ±0.005mm positional accuracy, it achieves pinpoint targeting of solder points, avoiding common defects like solder bridges, cold joints, or missed pins. The robot’s closed-loop temperature control (200°C–450°C) maintains stable heat output, matching the heat sensitivity of different mobile components—from heat-resistant metal connectors to delicate chip packages. Compared to manual soldering, which is prone to fatigue and human error, this robot ensures uniform solder joint quality across high-volume production, critical for maintaining stable signal transmission and device durability.
| Product Name | Suitable for various industries |
| desktop soldering robot | LCD |
Advanced Mobile-Centric Features: Streamlining Production Workflows
The advanced design of the robot is optimized for mobile phone assembly workflows. It can store soldering parameters for 100+ mobile models, enabling quick changeovers between different devices (e.g., from standard smartphones to flip phones). The intuitive control interface allows operators to program complex soldering paths easily, with built-in templates for common mobile components. Optional vision recognition enhances precision further by automatically compensating for minor PCB placement deviations. Its compact footprint also fits seamlessly into existing 3C production lines, integrating with automatic feeding and testing systems to boost overall production efficiency. Built-in fault diagnosis alerts operators to issues like tip wear or temperature anomalies, minimizing downtime.
In summary, the fusion of XYZ axis flexibility, high precision control, and advanced mobile-centric features makes this robot indispensable for mobile phone assembly. It delivers the accuracy, adaptability, and efficiency needed to meet the strict quality standards of the modern 3C electronics manufacturing industry.
