Advanced XYZ Axis Welding Robot for Mobile Phone Assembly with Iron Tip
In modern mobile phone assembly, the welding of delicate components such as flex cables, micro-connectors, and camera modules demands extreme precision and flexible operation. The Advanced XYZ Axis Welding Robot for Mobile Phone Assembly with Iron Tip perfectly meets these demands, integrating the multi-directional flexibility of XYZ Axis motion, the targeted heating of Iron Tip welding, and advanced control technology to deliver consistent, high-quality results for 3C electronics manufacturing.
XYZ Axis Motion: Flexible Access for Complex Mobile Components
The XYZ Axis motion system is the core of the robot’s adaptability in mobile phone assembly. Unlike single or dual-axis equipment, it enables three-dimensional linear movement with ±0.008mm positional accuracy, allowing the Iron Tip to easily reach hidden or angled welding points—such as the edge-mounted connectors of slim smartphones or the inner pins of camera modules. The adjustable movement speed (0.2–5mm/s) ensures smooth navigation between dense PCB components, avoiding interference with adjacent parts like OLED screens or battery connectors. This flexibility makes the robot suitable for various mobile phone models, from standard smartphones to foldable devices with complex internal structures.
Iron Tip: Targeted Heating for Heat-Sensitive Mobile Parts
The specialized Iron Tip is tailored to the heat sensitivity of mobile phone assembly components. It features rapid temperature response (200°C–450°C) and localized heat conduction, minimizing thermal spread to protect fragile parts like plastic housings and heat-sensitive chips. The tip offers multiple interchangeable shapes (conical, chisel, hoof) to match different welding scenarios—from tiny pin welding to seam welding of flex cables. With an anti-oxidation coating, it maintains stable heat transfer and durability, reducing replacement frequency even in high-volume production. Closed-loop temperature control ensures consistent heat output, preventing cold joints or overheating damage that could affect mobile phone performance.
Advanced Features: Streamlining Mobile Assembly Workflows
The robot’s advanced functions are optimized for mobile phone assembly efficiency. It supports parameter storage for 80+ mobile phone models, enabling quick changeovers between production tasks without repeated programming. The intuitive touchscreen control interface simplifies operation, reducing the learning cost for operators. Equipped with optional vision recognition technology, it automatically compensates for minor PCB placement deviations, further enhancing welding precision. Its compact design integrates seamlessly into existing SMT production lines, matching with automatic feeding systems to boost overall assembly efficiency. Built-in fault alerts for tip wear or temperature anomalies minimize downtime, ensuring continuous stable operation.
| Product Title | Suitable for various industries |

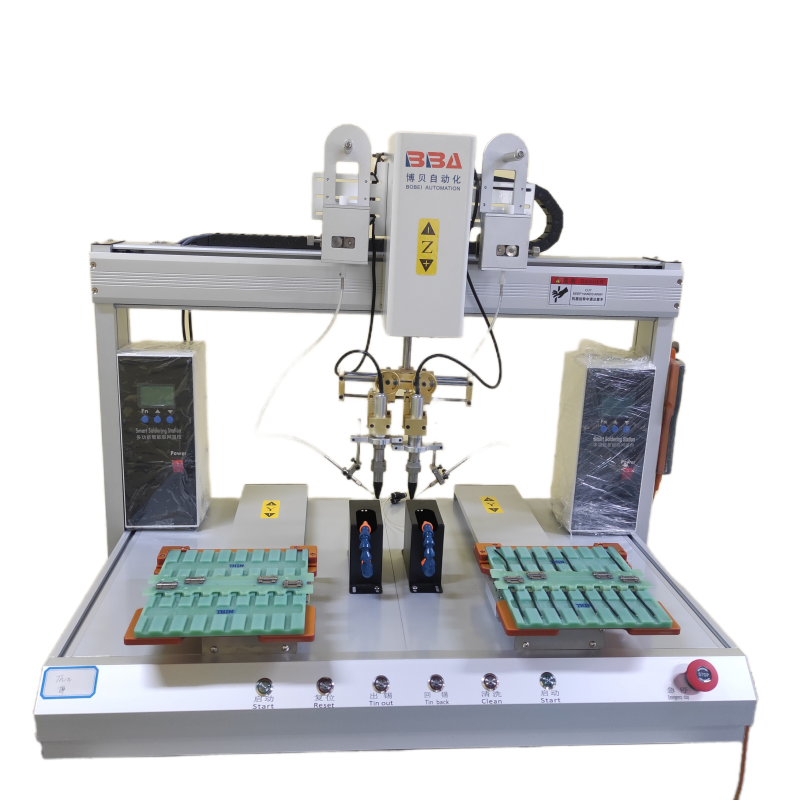

| desktop soldering robot | Electro-Acoustic |
In summary, the fusion of XYZ Axis flexibility, Iron Tip targeted heating, and advanced control features makes this robot indispensable for mobile phone assembly. It delivers the precision, component protection, and efficiency needed to meet the strict quality standards of modern 3C electronics manufacturing.
