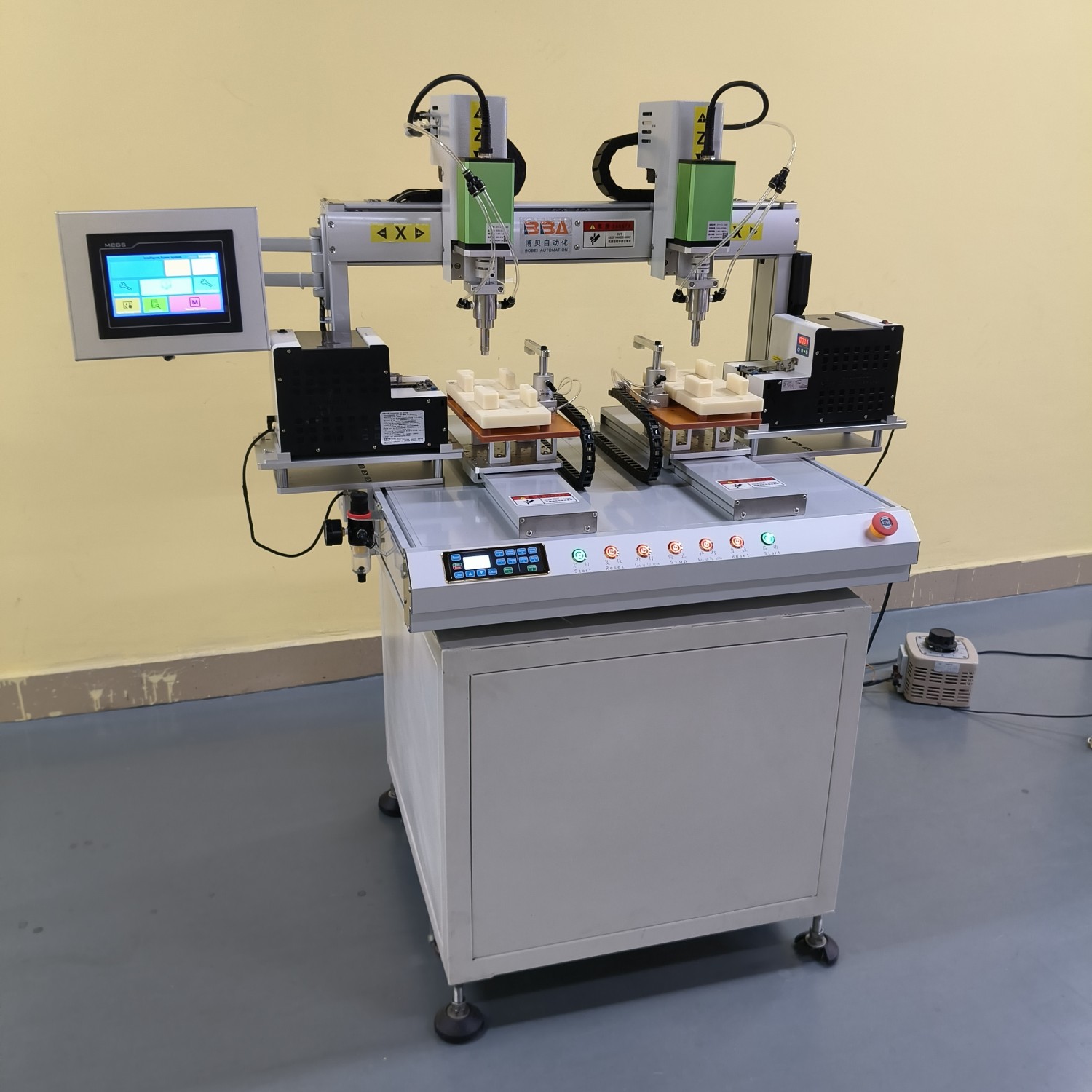

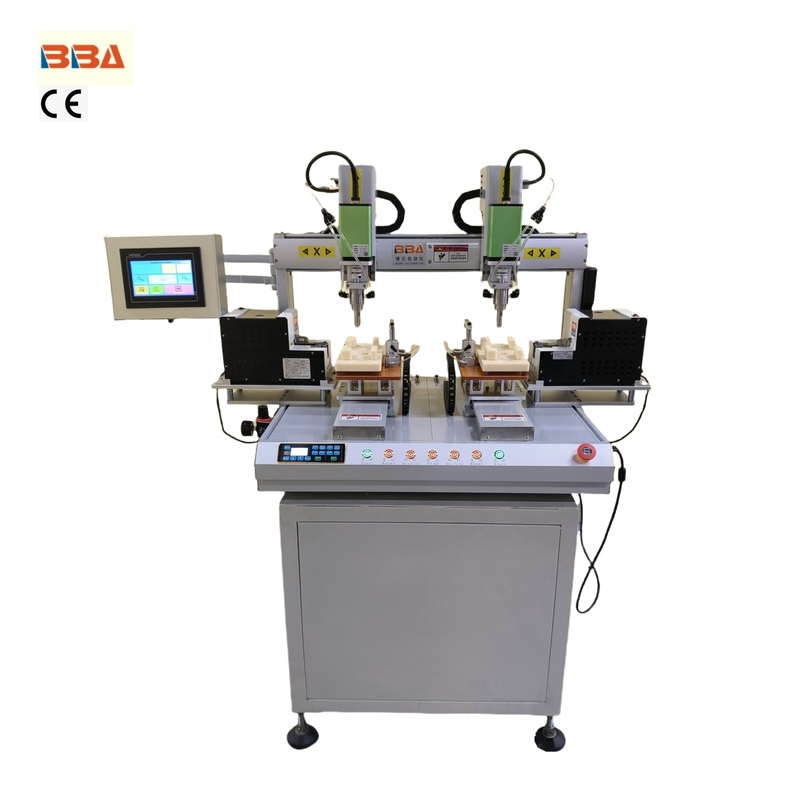

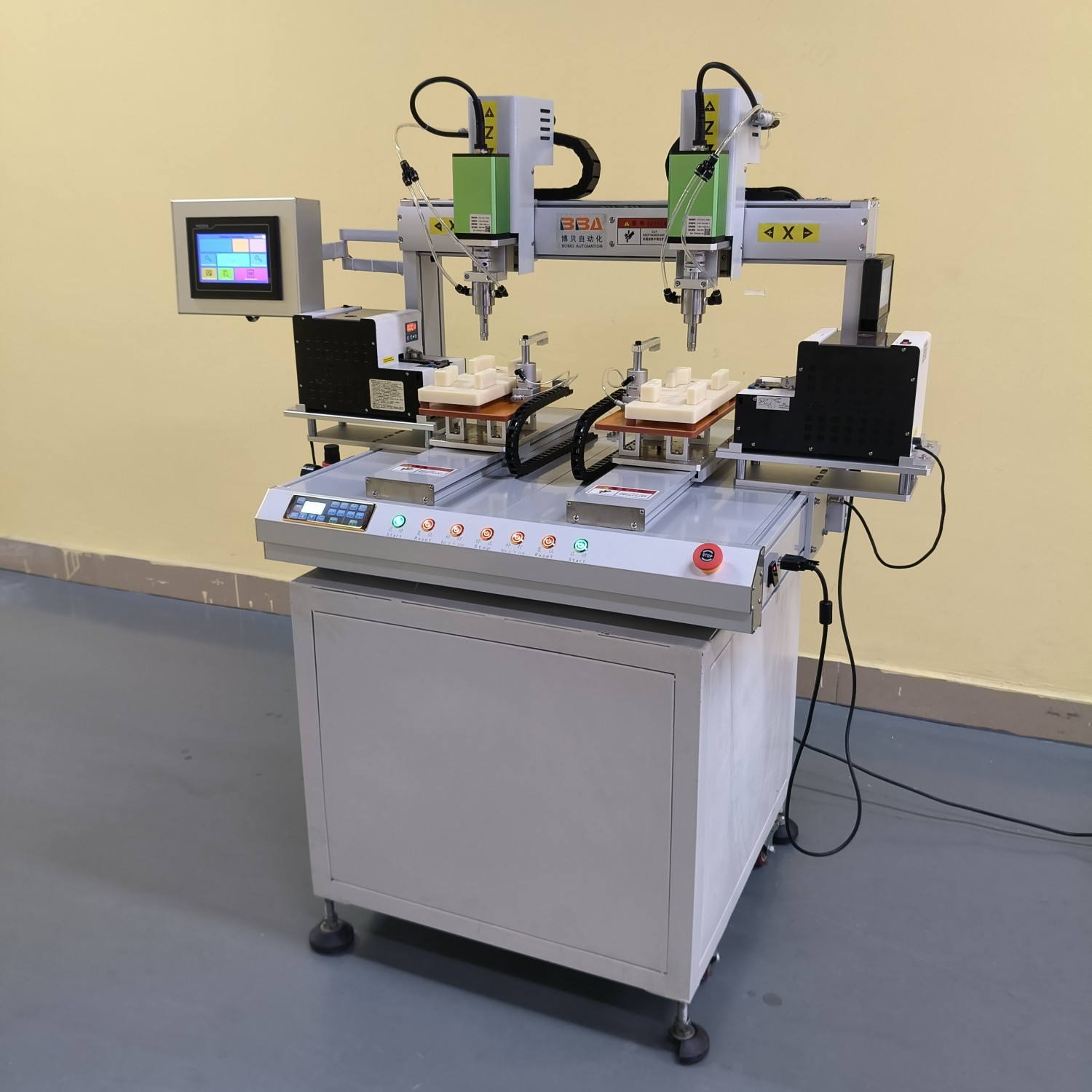

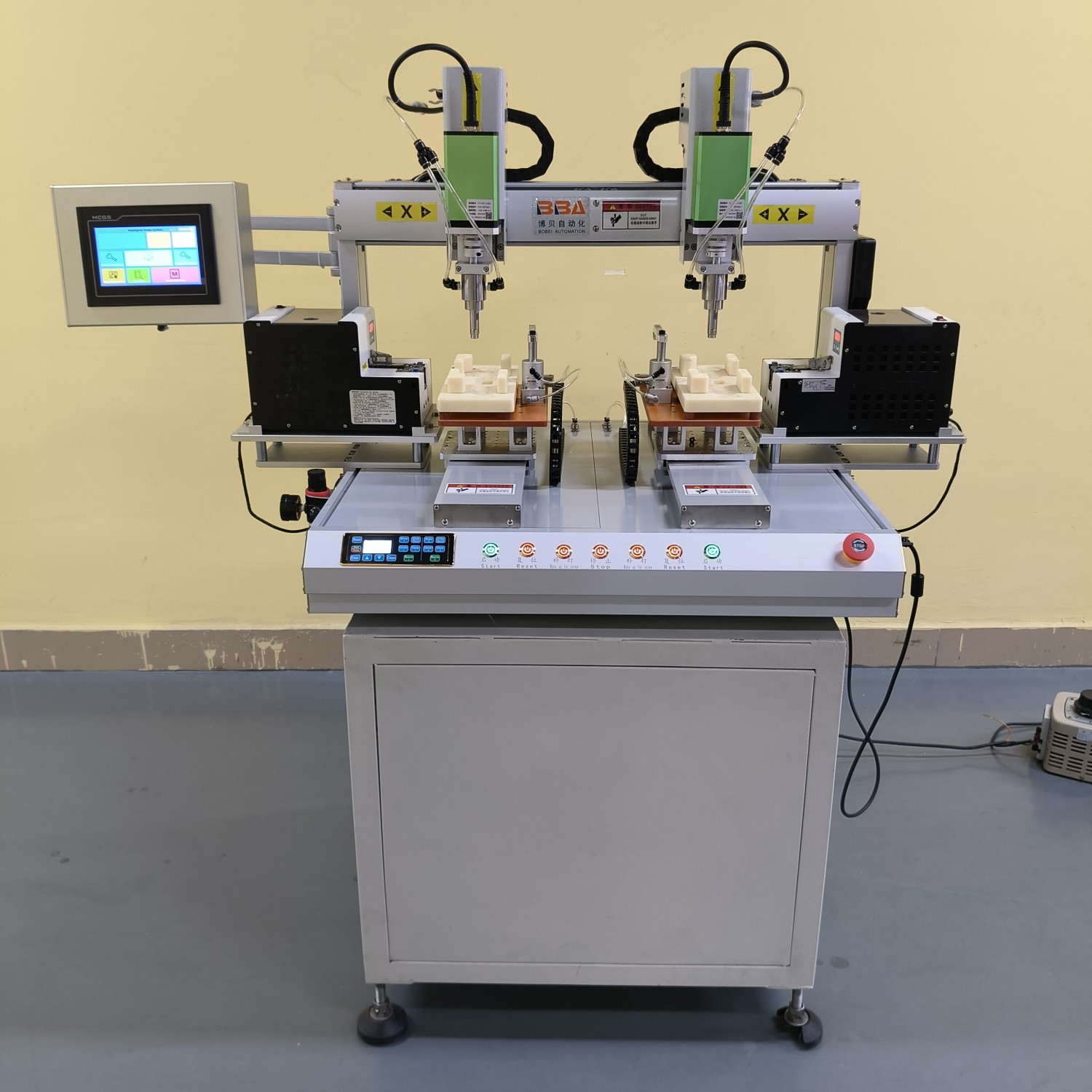

BBA Two Head Screw Fastening Machine Automatic Robot Screw Tightening Machine Screw Blowing Dispensing Machinery China Factory

The BBA Two Head Screw Fastening Machine offers high-efficiency screw tightening with dual robotic heads. Featuring automatic screw feeding, blowing, and dispensing functions, it ensures precise and rapid assembly. Ideal for industrial production lines, this machine is built for stability, speed, and accuracy—manufactured in China with factory-direct support.
Availability:
Quantity:
Inquire

  • BBA-6441LS

BBA Two Head Screw Fastening Machine Automatic Robot Screw Tightening Machine Screw Blowing Dispensing Machinery China Factory

ModelBBA-6441LS with suction type feeder
Moving RangeX/Y1/Y2/Z 500*400*400*100MM
Max Jig Size200*280*70(MM)
Power SupplyAC110V/220V, 50HZ/60HZ
Air Pressure 0.4 to 0.8 Mpa
Moving SpeedX, Y 600-800 MM/S, Z 400MM/S
Control SystemModule driver + Teach Pendant
Feeder ModeBlowing type
Applicable screwM1-M8
Working efficiency1.2s/screw
Driving ModeClosed-loop precison Motor
Alarm SystemScrew Stripped and Loose Alarm
Screwdriver typeBrushless screwdriver
Torque RangeDepends on Products
Repeated Accuracy+/-0.02MM
Weight98(KG)
Dimension of the machine850*750*500(MM)
Working EnvironmentTemp 0-40℃, Humidity 20%-95%


BBA XYZ Axis Automatic Screw Fastening Robot with Dual Bolt Feeding System | High-Speed Screw Driving Machine for Assembly Line Automation

1.Improved productivity with a blow-feed screw supply system.

2.Compatible with screw sizes from M1 to M8.

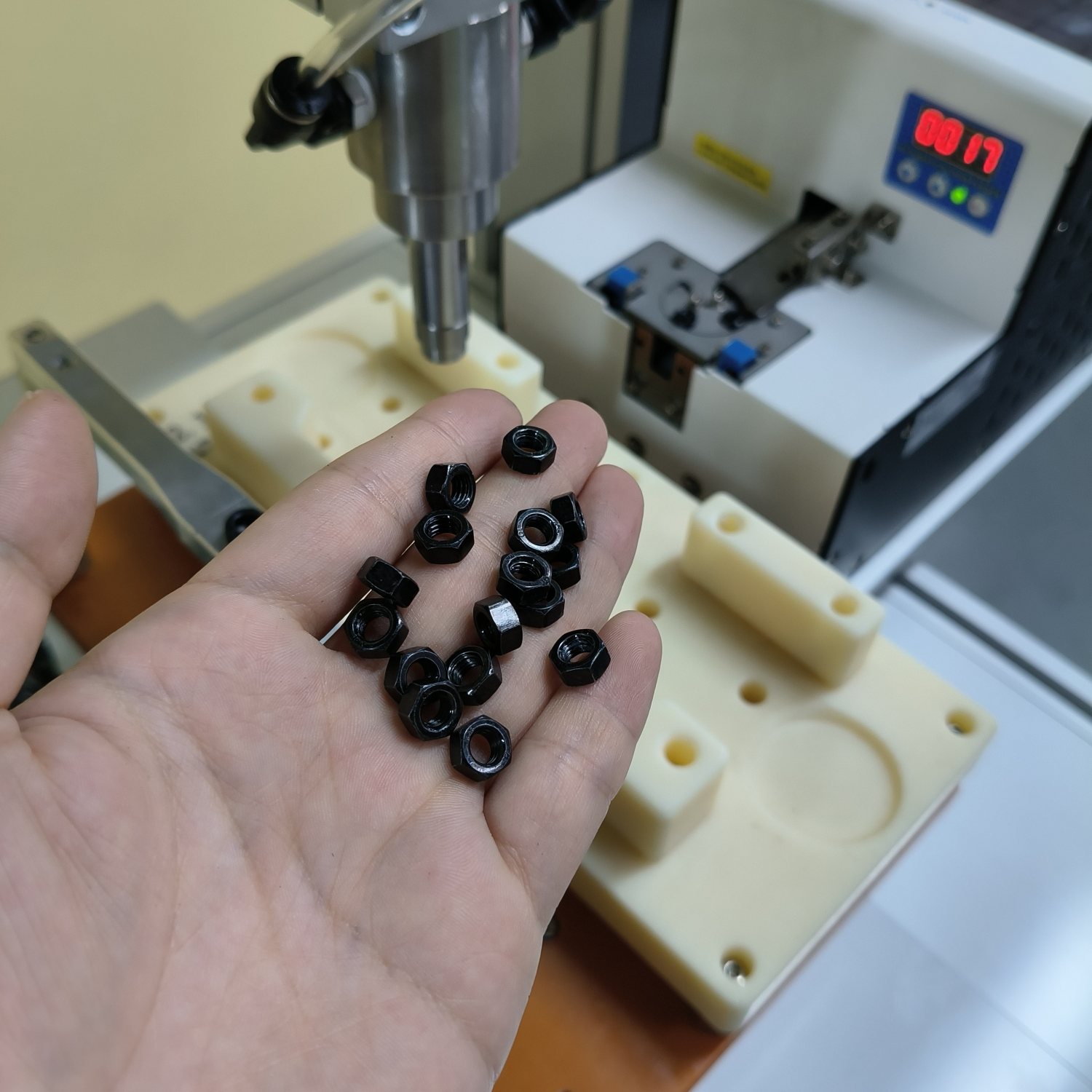

3.Suitable for tightening screws in deep-set holes with ease.

4.Superior reliability with an automatic alert system for missed locks, stripped threads, and improper height.

5.High adaptability — rapid fixture changes enable compatibility with various product models.
ScrewFasteningMachineScrewFasteningMachinery

robotic screw feederrobotic screw presenter

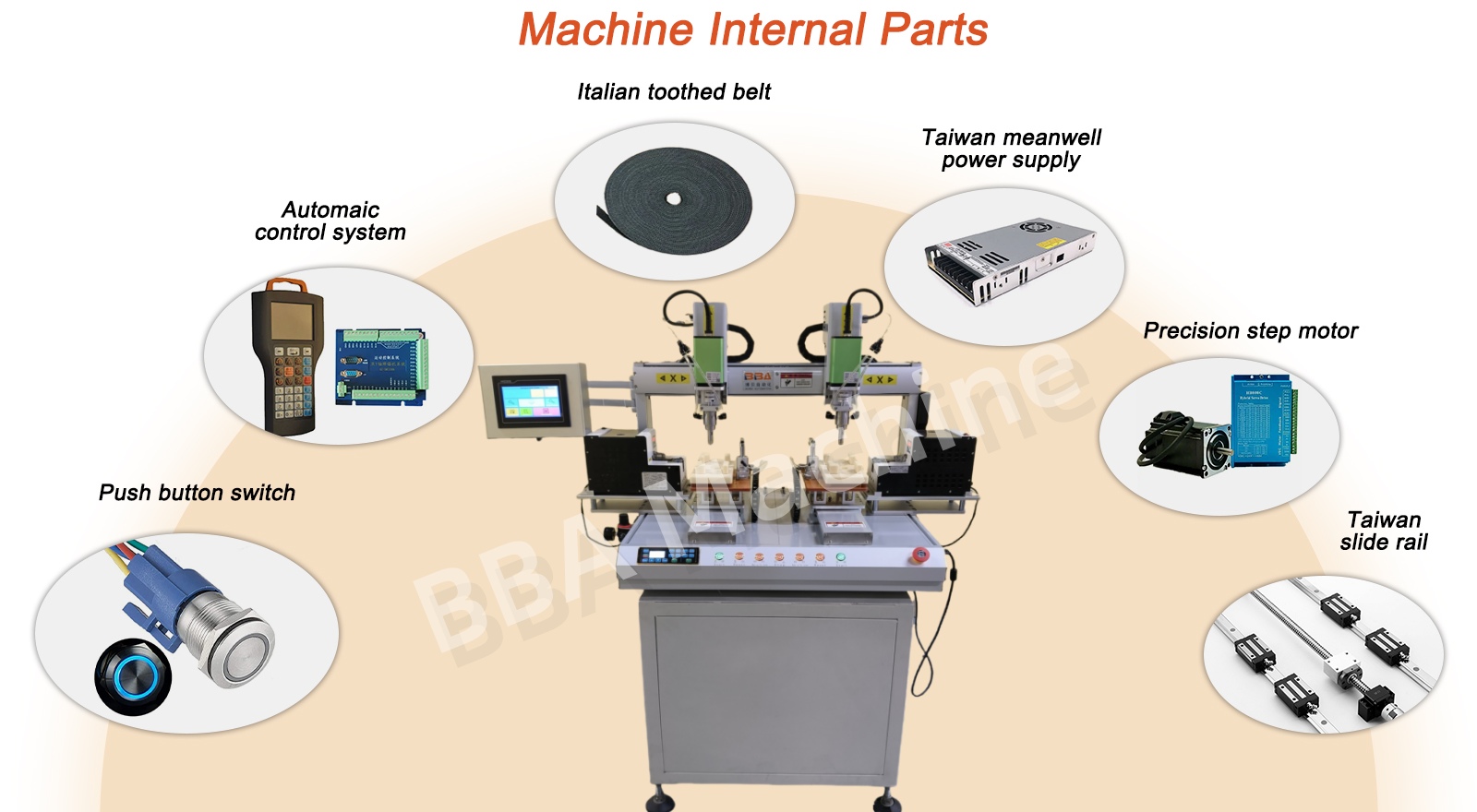

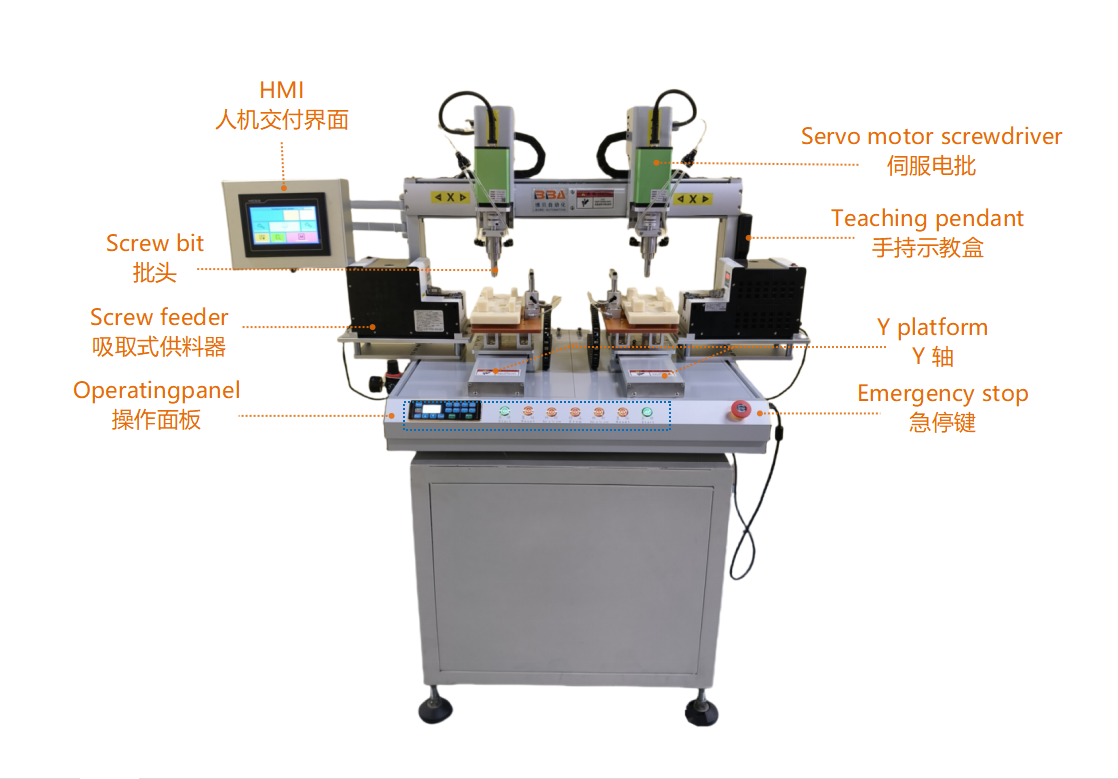

FEATURES of BBA XYZ Axis Automatic Screw Fastening Robot with Dual Bolt Feeding System | High-Speed Screw Driving Machine for Assembly Line Automation

- Dual Y-axis working tables allow alternating screw fastening for smoother workflow.

- Air type screw feeding, automatic screw tightening.

- Big capacity screw feeder, save time to load the screws.

- Precision torque control adjustable for different product specifications.

- Clean look with small size, save space.

- Simple configuration through an intuitive teaching pendant interface.

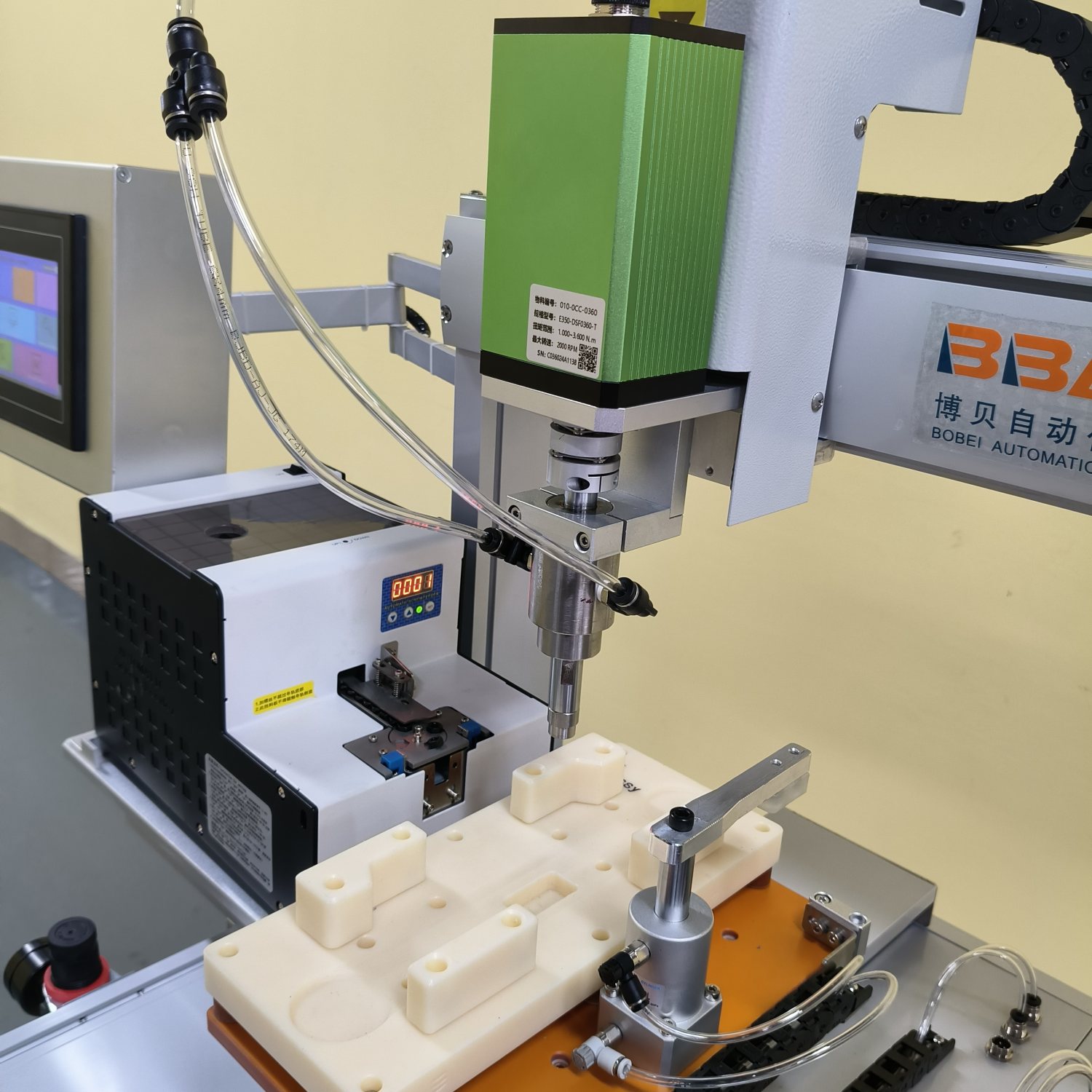

blowing type screw feeder

Application of BBA XYZ Axis Automatic Screw Fastening Robot with Dual Bolt Feeding System | High-Speed Screw Driving Machine for Assembly Line Automation

- Broadly applied in communication and electronics: smartphones, cameras, HDDs, keyboards, printers, PCs, DVDs, appliances, plastic goods, toys, etc.

- Ideal for assembling household appliances like air conditioners, refrigerators, water heaters, gas cooktops, battery ovens, and more.

- Toy industry: toy car, toy gun, toy controller, etc.



screw drilling robotscrew fastening robot

- Good pre-sale and after-sale service.

- Sturdy and reliable machinery available at cost-effective factory rates.

- One-year warranty covering the main unit.

- Free training at our factory.

- Fast lead time: standard machines ship within 5–10 days; customized units within 15–20 days.

- 100% quality inspection before delivery.

- Production time: 5–10 days for standard types; 15–20 days for tailored solutions.

- Complimentary sample testing service is available upon request.
