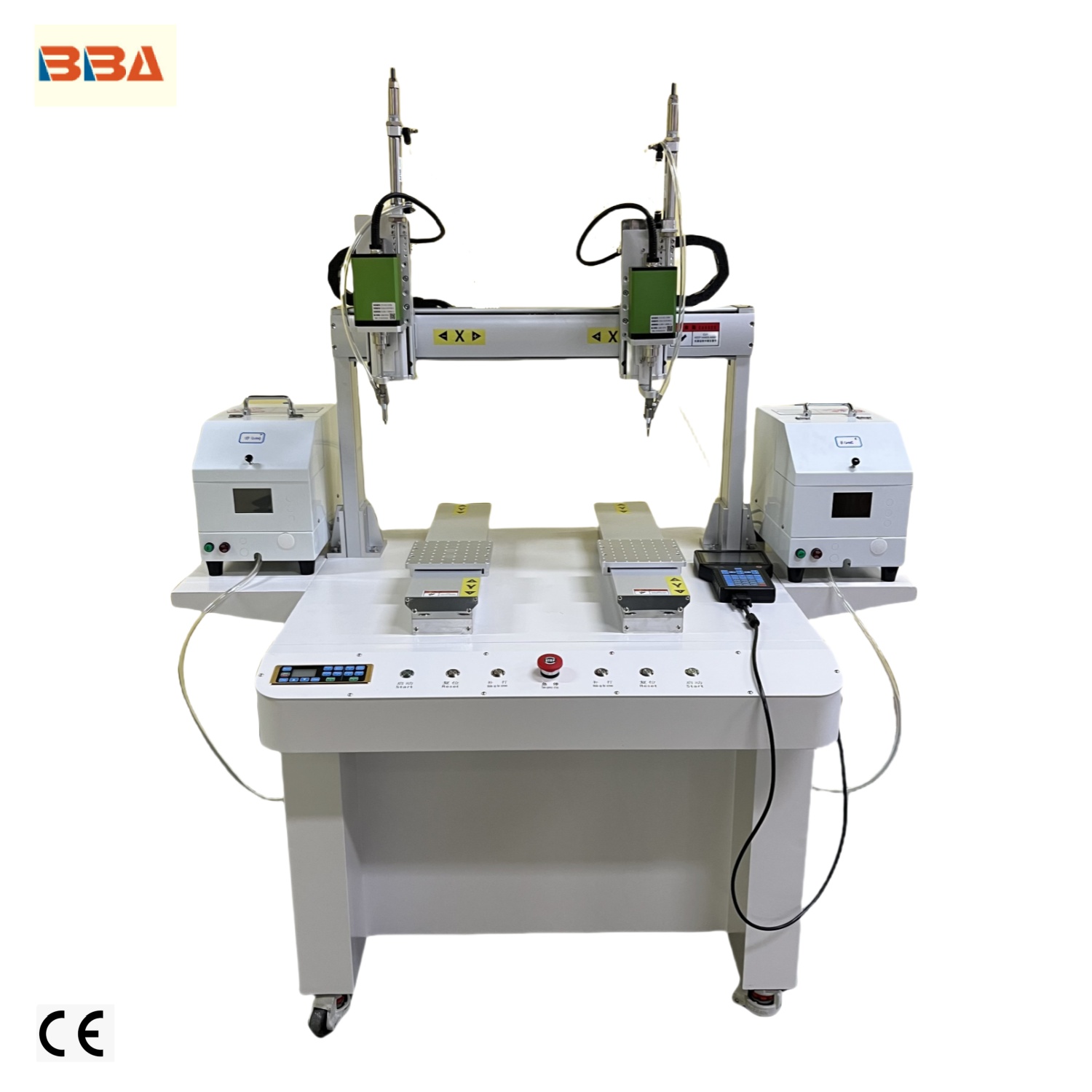

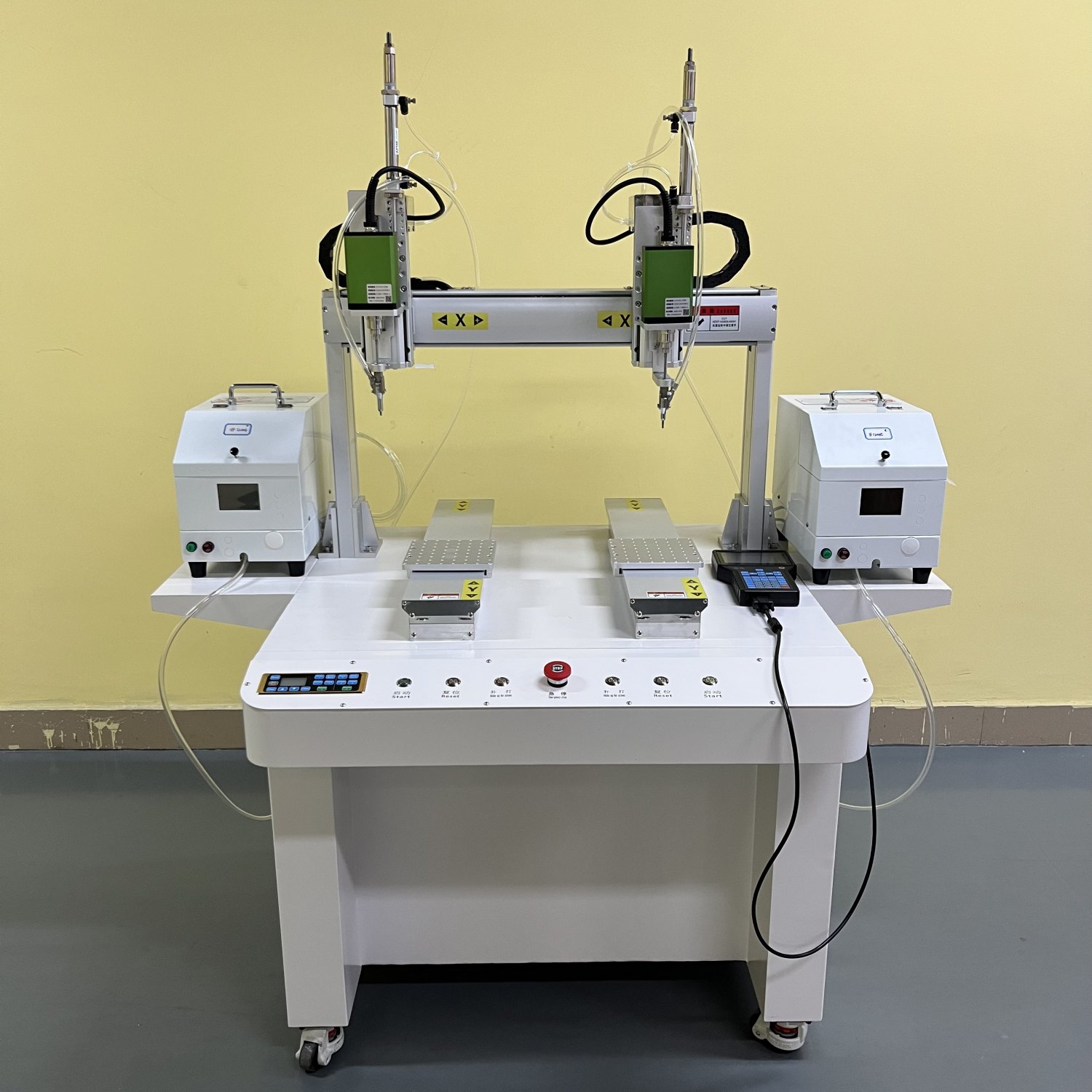

BBA XYZ Axis Automatic Screw Fastening Robot with Dual Bolt Feeding System | High-Speed Screw Driving Machine for Assembly Line Automation

This BBA XYZ Axis Automatic Screw Fastening Robot features a dual bolt feeding system and high-speed screw driving performance, designed to boost productivity in automated assembly lines. Engineered for precision and efficiency, it supports multiple screw positions and products, making it ideal for electronics, appliances, and industrial automation applications. A smart solution for fast and reliable screw fastening.
Availability:
Quantity:
Inquire

  • BBA-6441LS

BBA XYZ Axis Automatic Screw Fastening Robot with Dual Bolt Feeding System | High-Speed Screw Driving Machine for Assembly Line Automation

ModelBBA-6441LS with suction type feeder
Moving RangeX/Y1/Y2/Z 500*400*400*100MM
Max Jig Size200*280*70(MM)
Power SupplyAC110V/220V, 50HZ/60HZ
Air Pressure 0.4 to 0.8 Mpa
Moving SpeedX, Y 600-800 MM/S, Z 400MM/S
Control SystemModule driver + Teach Pendant
Feeder ModeBlowing type
Applicable screwM1-M8
Working efficiency1.2s/screw
Driving ModeClosed-loop precison Motor
Alarm SystemScrew Stripped and Loose Alarm
Screwdriver typeBrushless screwdriver
Torque RangeDepends on Products
Repeated Accuracy+/-0.02MM
Weight98(KG)
Dimension of the machine850*750*500(MM)
Working EnvironmentTemp 0-40℃, Humidity 20%-95%


BBA XYZ Axis Automatic Screw Fastening Robot with Dual Bolt Feeding System | High-Speed Screw Driving Machine for Assembly Line Automation

1.Improved productivity with a blow-feed screw supply system.

2.Compatible with screw sizes from M1 to M8.

3.Can used it to tighten screws with deep screw holes.

4.Superior reliability with an automatic alert system for missed locks, stripped threads, and improper height.

5.High utilization rate—quick fixture replacement allows adaptation to different product types.

ServoMotorScrewdriver

IndustrialScrewFasteningRobotrobotic screw feederrobotic screw presenter

FEATURES of BBA XYZ Axis Automatic Screw Fastening Robot with Dual Bolt Feeding System | High-Speed Screw Driving Machine for Assembly Line Automation

- Dual Y-axis platforms support alternate screw driving for streamlined operation.

- Air type screw feeding, automatic screw tightening.

- Big capacity screw feeder, save time to load the screws.

- Accurate torque adjustment tailored to specific product needs.

- Clean look with small size, save space.

- Simple configuration through an intuitive teaching pendant interface.

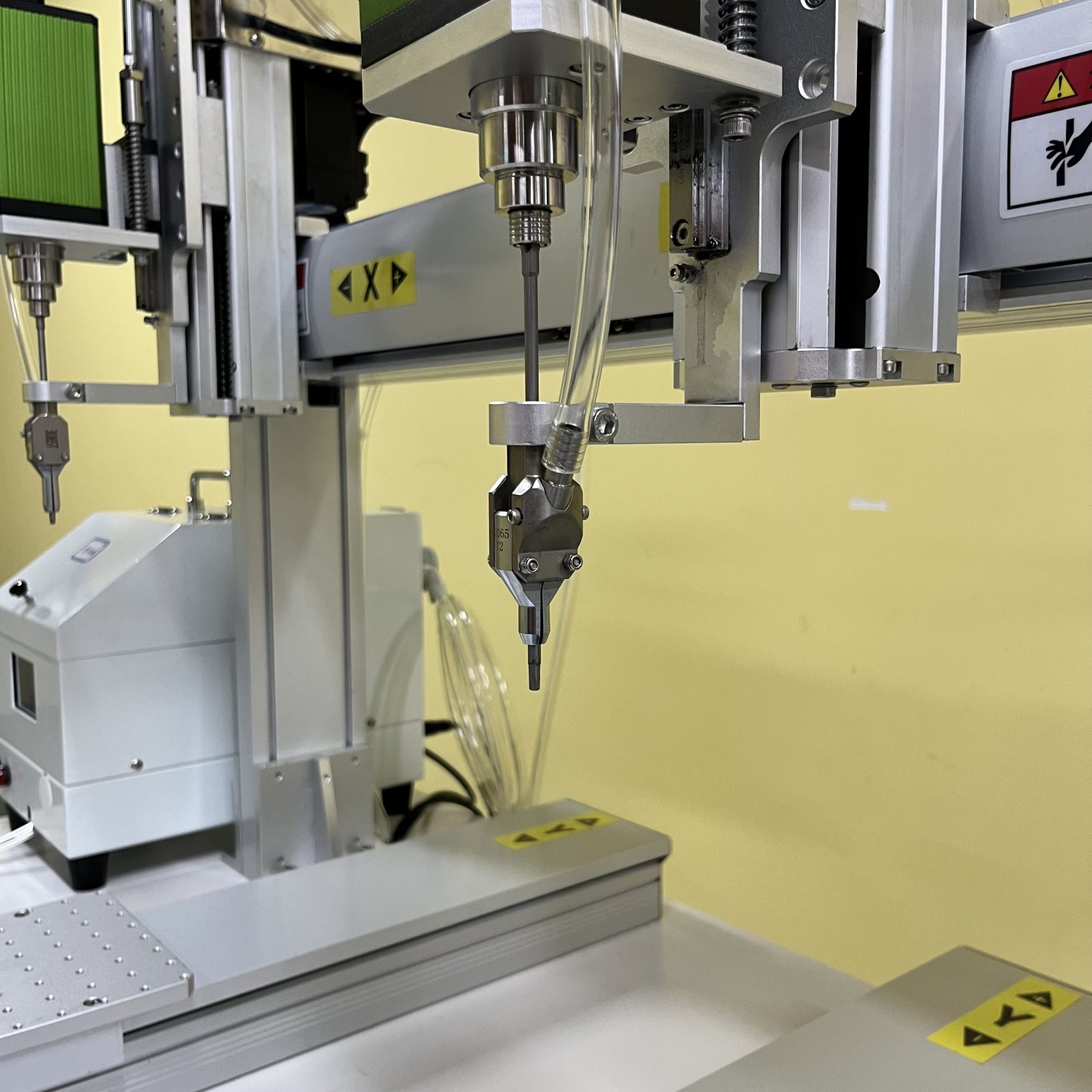

blowing type screw feeder

Application of BBA XYZ Axis Automatic Screw Fastening Robot with Dual Bolt Feeding System | High-Speed Screw Driving Machine for Assembly Line Automation

- Broadly applied in communication and electronics: smartphones, cameras, HDDs, keyboards, printers, PCs, DVDs, appliances, plastic goods, toys, etc.

- Suitable for home appliance assembly: air conditioners, fridges, water heaters, gas stoves, battery ovens, and more.

- Toy industry: toy car, toy gun, toy controller, etc.

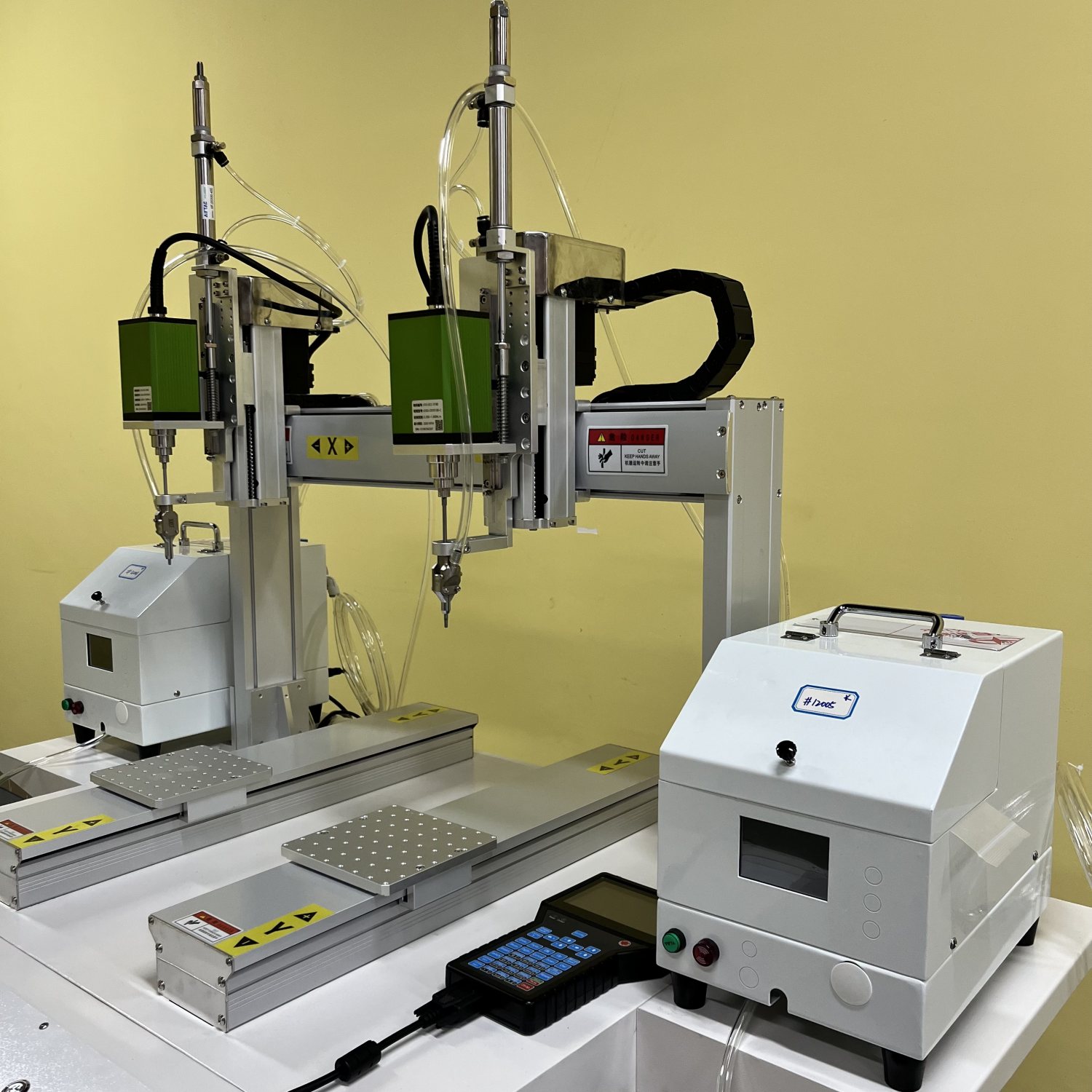

screw drilling robotscrew fastening robot

- Good pre-sale and after-sale service.

- Sturdy and reliable machinery available at cost-effective factory rates.

- One-year warranty covering the main unit.

- Free training at our factory.

- Fast delivery time: standard:5-10 days. Customized: 15-20days.

- 100% quality inspection before delivery.

- Delivery time: Standard models 5–10 days, customized models 15–20 days.

- Complimentary sample testing service is available upon request.
