Benchtop Automatic Soldering Machine with Dual Solder Head for LED Soldering
For small-to-medium batch LED soldering operations—such as small LED workshops, R&D labs, and prototype production—equipment that balances compactness, automation, and efficiency is essential. The benchtop automatic soldering machine with dual solder head perfectly meets this demand, combining the space-saving advantage of benchtop design, the labor-saving efficiency of automatic operation, and the high throughput of dual solder head to deliver consistent quality for LED strips, modules, and bulb components.
Benchtop Design: Space-Saving for Versatile Workspaces
The benchtop configuration is a standout feature tailored for space-constrained environments. With a compact footprint (typically 45x55cm) and lightweight structure (under 25kg), it fits easily on standard workbenches, eliminating the need for dedicated floor space required by large industrial soldering lines. This makes it ideal for small LED manufacturing workshops, electronics repair centers, and R&D facilities developing new LED lighting products. Its portability also allows flexible repositioning to adapt to different LED soldering tasks—from soldering tiny LED indicator pins to assembling LED backlight modules. Anti-slip feet ensure stable operation, preventing vibration-induced soldering errors even in busy workshop environments.

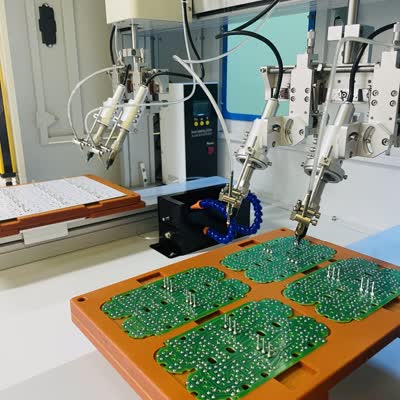

Dual Solder Head: Doubling Efficiency for LED Production
The dual solder head design is the core driver of efficiency in LED soldering. Unlike single-head machines, it can simultaneously solder two LED components or alternate between multiple joints on the same LED PCB, boosting throughput by 80%–100%. LED products often feature dense arrays of chips or pins, and the dual heads—with independent temperature control (250°C–450°C)—can adapt to different heat requirements: low temperatures for heat-sensitive LED chips and higher temperatures for PCB pads. For example, soldering a 30-LED strip can be completed in half the time of single-head equipment, significantly improving productivity for small-batch production. The heads also support quick tip replacement, adapting to different solder joint sizes of various LED products.
| Product Label | Ideal for different industries |
| Tabletop Soldering System | Digital |
Automatic Operation: Consistent Quality with Minimal Labor
The automatic system ensures stable and reliable LED soldering quality while reducing labor costs. Equipped with precise positioning technology (±0.02mm accuracy), it targets tiny LED solder pads (as small as 0.2mm) without causing defects like solder bridges or cold joints—common issues in manual soldering. The intuitive control panel allows operators to program soldering paths, temperature, and dwell time, with the ability to store parameters for 60+ LED product models for quick recall. Optional automatic tin feeding further enhances automation, delivering precise tin amounts per joint and reducing material waste. Built-in error alerts for abnormal temperatures or head malfunctions minimize downtime and defective products.
In summary, the fusion of benchtop compactness, dual solder head efficiency, and automatic precision makes this machine indispensable for LED soldering in small-to-medium scale operations. It delivers the space-saving, high-efficiency, and consistent-quality solutions needed to meet the demands of the LED manufacturing industry.
