CNC Controlled Helicoil Installation System for Consistent Thread Reinforcement

The CNC Controlled Helicoil Installation System ensures precise, repeatable, and consistent thread reinforcement across various applications. With automated control, it minimizes human error and enhances assembly reliability. Designed for industrial production, this system supports fast helicoil insertion, stable performance, and long-lasting durability, making it an excellent solution for manufacturers requiring strong, reinforced threads in electronics, automotive, and mechanical parts.
Availability:
Quantity:
Inquire

  • BBA-8441YT

  • BBA

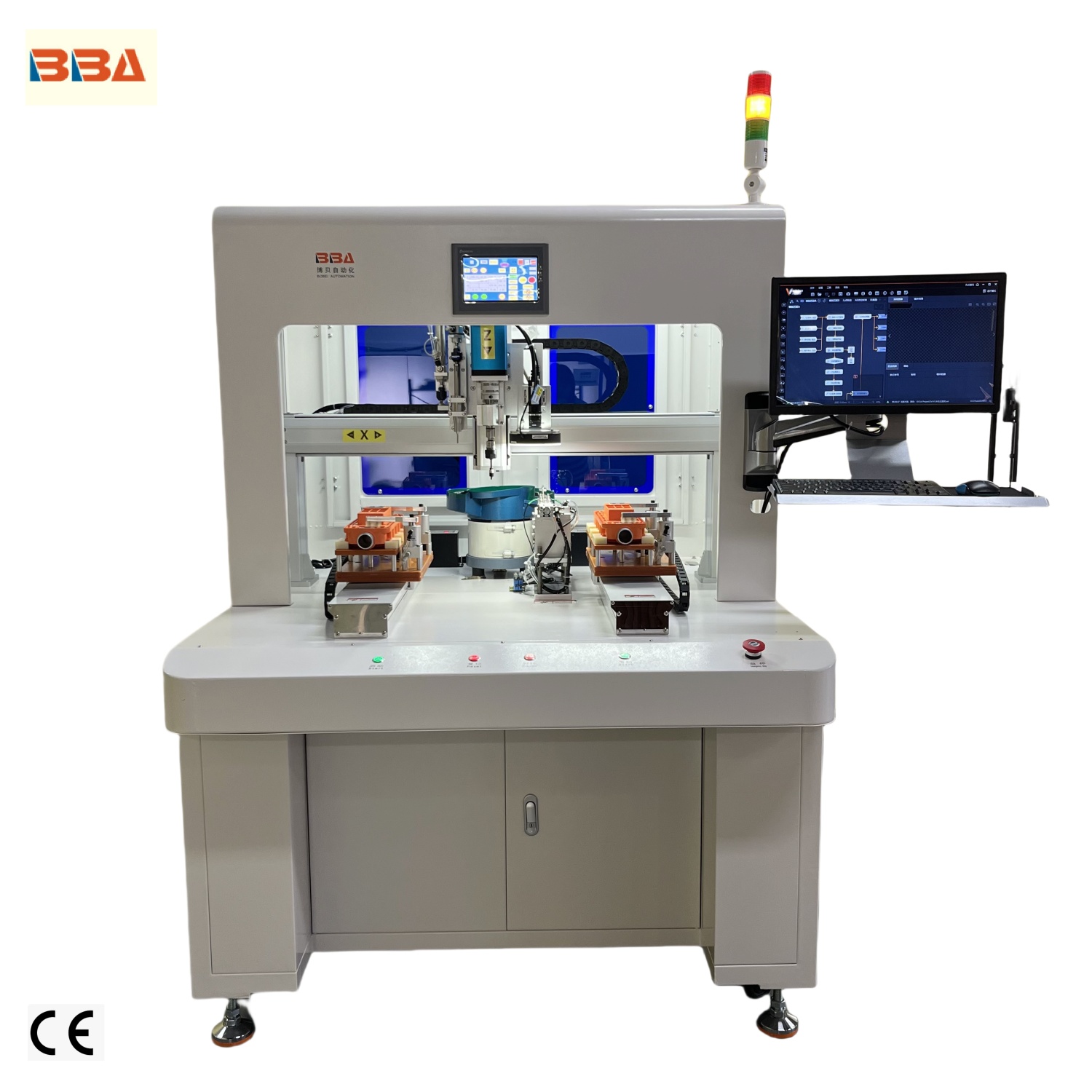

BBA CNC Controlled Helicoil Installation System for Consistent Thread Reinforcement


ModelBBA-8441YT
VoltageAC110/220V 50/60HZ
Power1000W
Stroke500*400*400*100mm (X*Y*Z), can be customized
Movement speed10-500mm/S
Position accuracy±0.05mm/axis
Universal screw threadM3-M10
Screw thread height6-20mm
Screw thread materialCopper, Aluminum, Metal, Stainless steel
Screw thread typeSelf-tapping thread, screw thread, steel thread

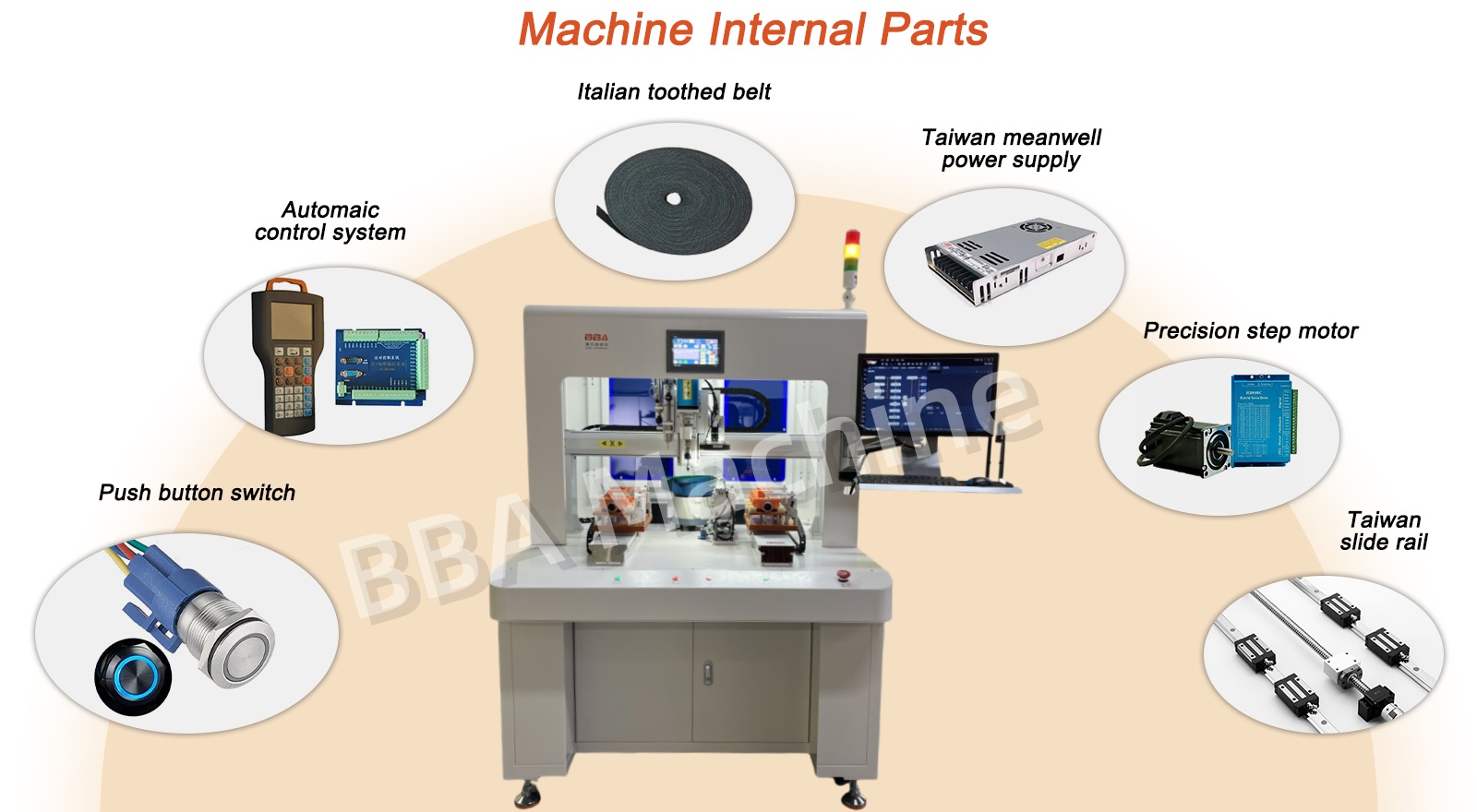

Transmission mode

Precision toothed belt+guide rail

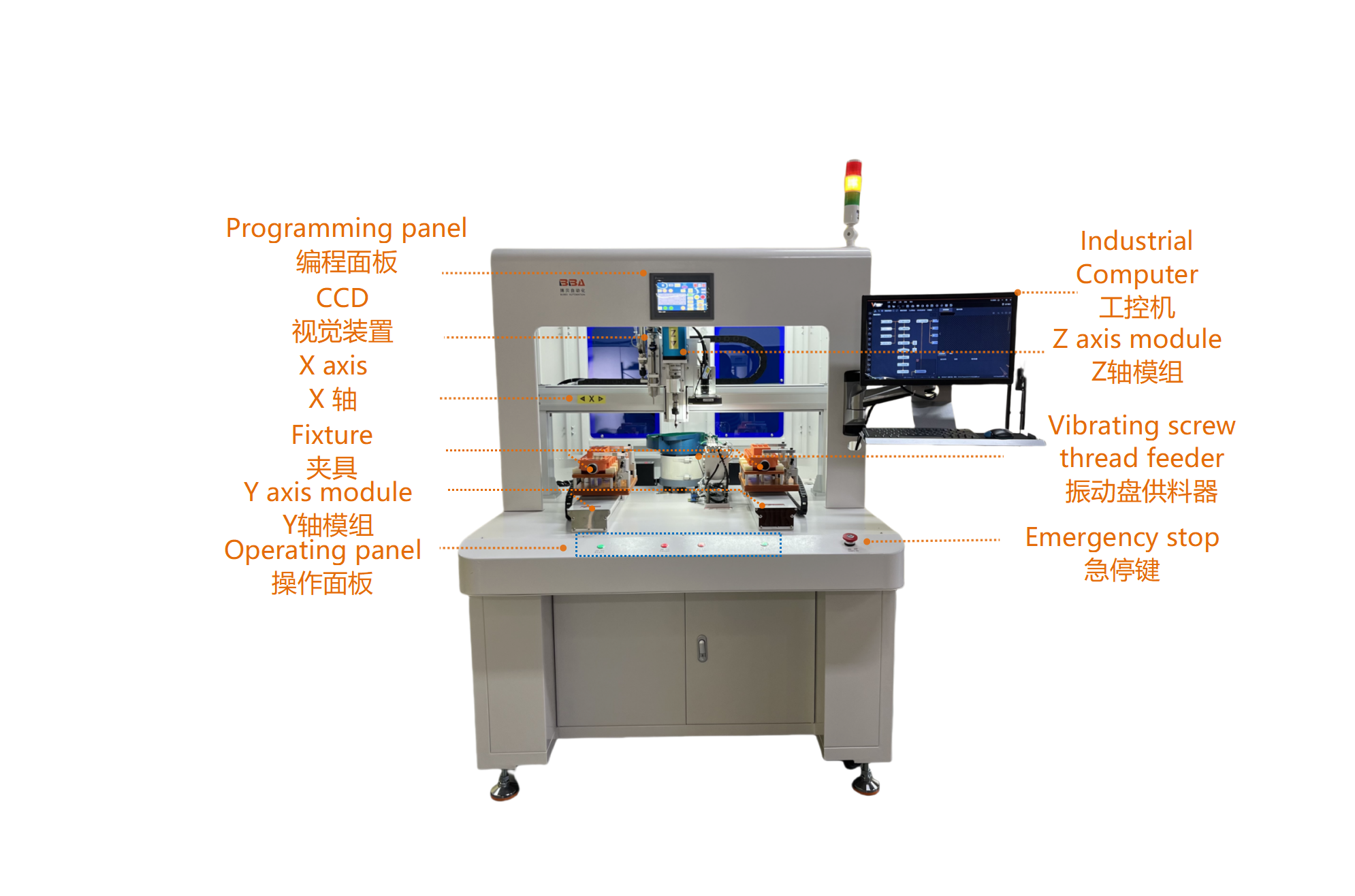

Control panelPLC+HMI screen
Conveying modeVibrating plate+direct vibrating track
Work efficiency6S/pcs (include cutting thread tail), details depends on thread size
Air pressure0.4-0.6Mpa
External portRS232
Program capacity12 groups, 20 points per group; can be customized
Work environmentTemperature: 5-40℃ Humidity: 20-90%
Weight580kg
External machine size (L*W*H)850*1270*1560mm, can be customized





BBA CNC Controlled Helicoil Installation System for Consistent Thread Reinforcement

helicoil installerhelicoil system



Wire thread inserting machine packagestainless steel screw thread inserts feeding



BBA CNC Controlled Helicoil Installation System for Consistent Thread Reinforcement

Features:

  1. Adopts a vibrating feeder and linear vibration track to deliver screw thread inserts.

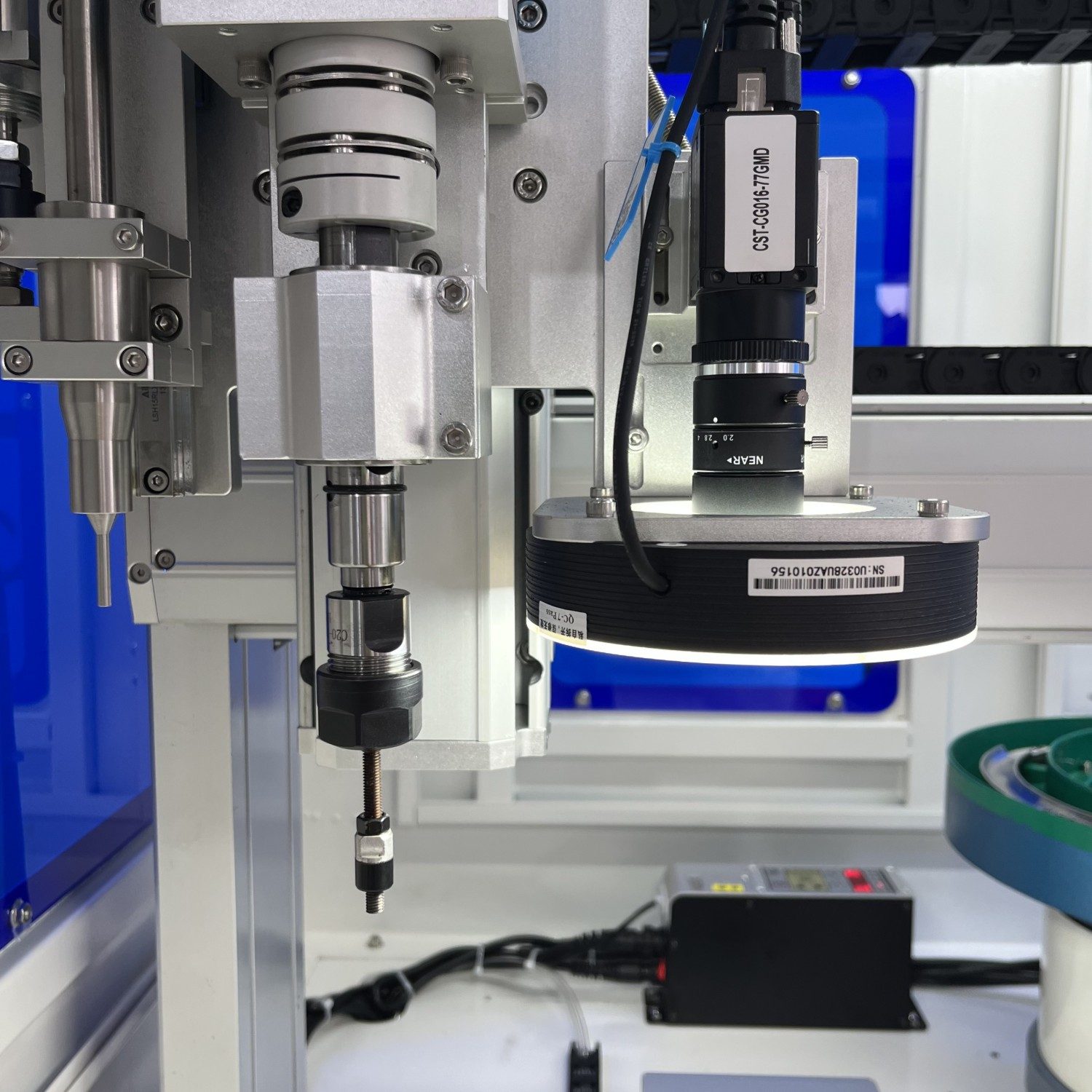

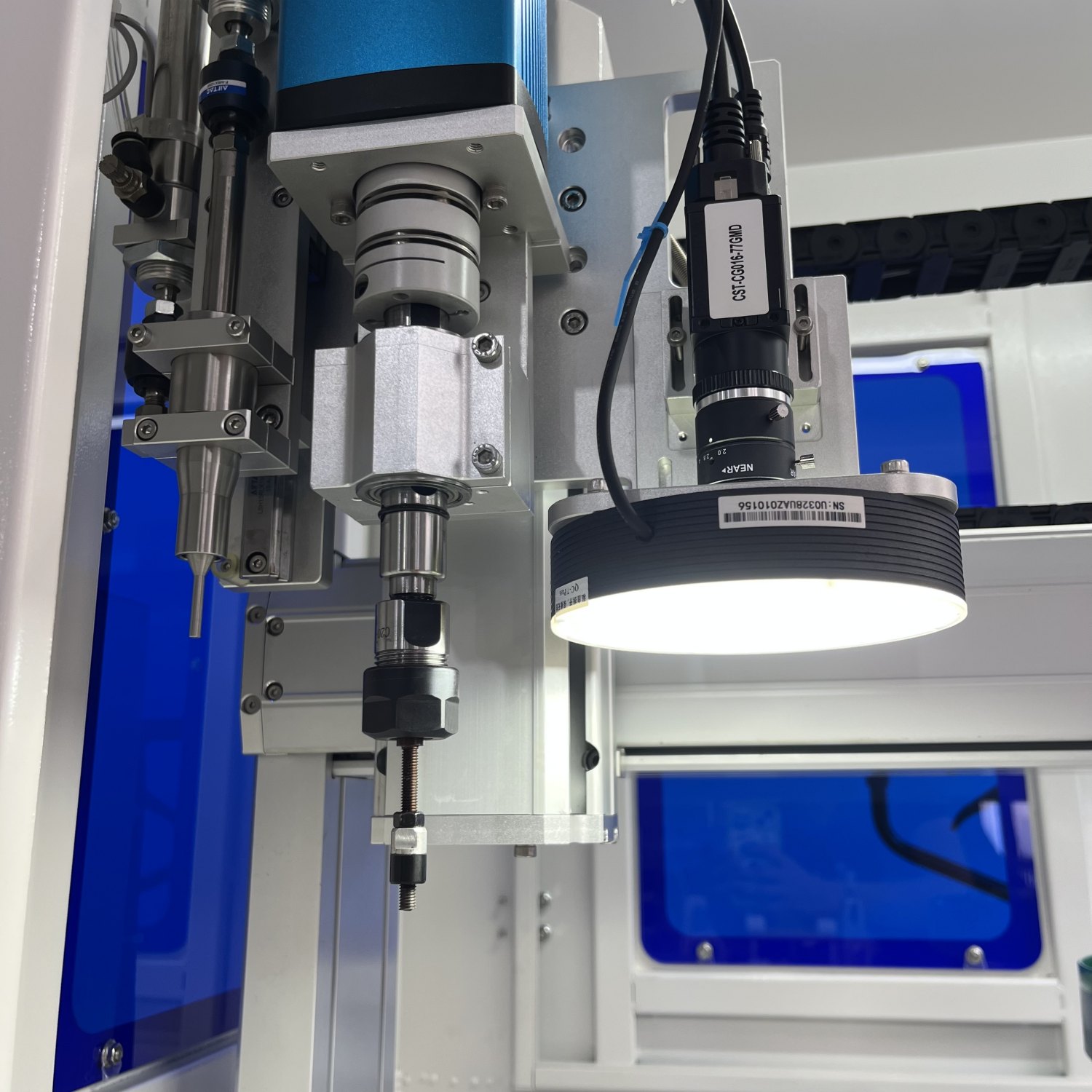

  2. Equipped with a servo-driven screwdriver for both insertion and retrieval tasks.

  3. Retracted the thread insert tail automatically.

  4. High efficiency: up to 6S/pcs VS 10s/pcs of other suppliers.

  5. It can be equipped with functions of glue dispensing and depth detection.

  6. Can performed as double screw thread inserting tightening system.

  7. Tailor-made machine options are available on request.
