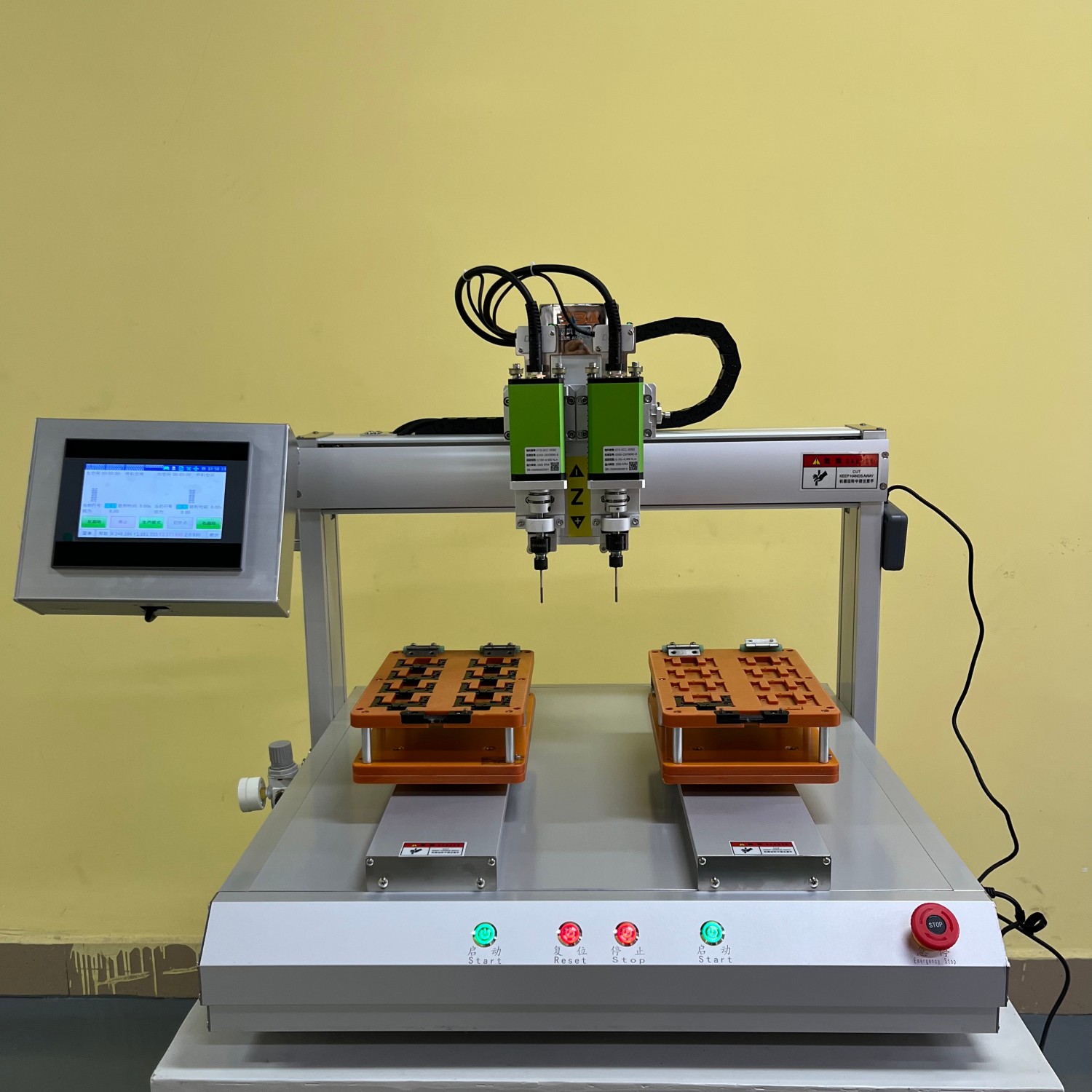

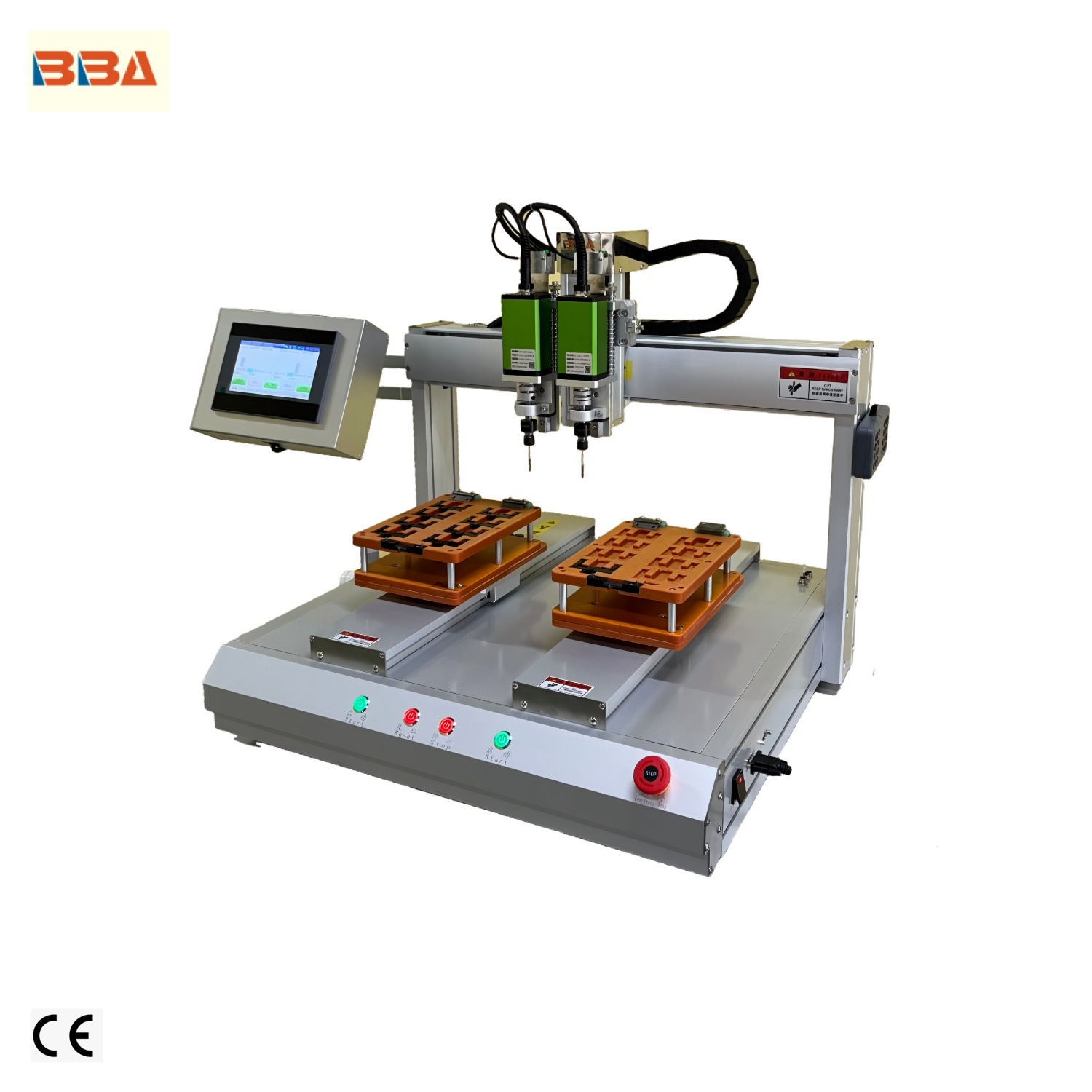

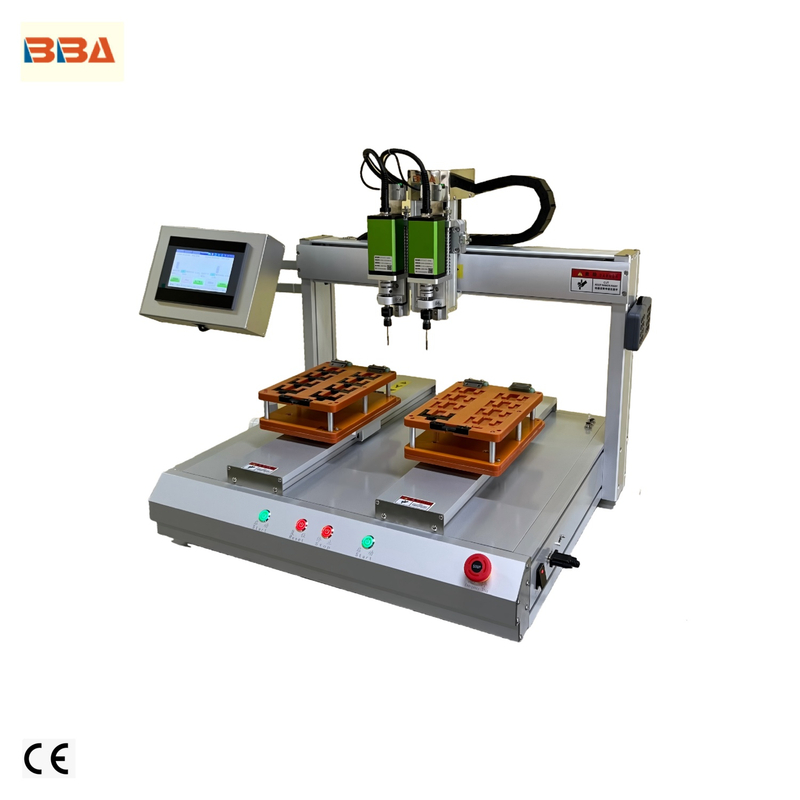

Thread Gauge Inspection Machine with Go No Go System for Accurate Bolt And Nut Quality Control in Industrial Production

The thread gauge inspection machine features a reliable Go/No-Go system to ensure accurate quality control of bolts and nuts in industrial production. It provides fast and consistent thread verification, reducing human error and improving inspection efficiency. Designed for durability and precision, the system supports high-volume operations while maintaining strict tolerance standards, making it an ideal solution for manufacturers seeking dependable thread inspection performance.
Availability:
Quantity:
Inquire

  • BBA-5441TG

  • BBA

Thread Gauge Inspection Machine with Go No Go System for Accurate Bolt And Nut Quality Control in Industrial Production


ModelBBA-5441TG
VoltageAC110/220V 50/60HZ
Power1000W
Stroke500*400*400*100mm (X*Y*Z), can be customized
Movement speed10-500mm/S
Position accuracy±0.05mm/axis
Universal screw threadM3-M10
Screw thread height6-20mm
Screw thread materialCopper, Aluminum, Metal, Stainless steel
Screw thread typeSelf-tapping thread, screw thread, steel thread

Transmission mode

Precision toothed belt+guide rail
Control panelPLC+HMI screen
Conveying modeVibrating plate+direct vibrating track
Work efficiency6S/pcs (include cutting thread tail), details depends on thread size
Air pressure0.4-0.6Mpa
External portRS232
Program capacity12 groups, 20 points per group; can be customized
Work environmentTemperature: 5-40℃ Humidity: 20-90%
Weight580kg
External machine size (L*W*H)850*1270*1560mm, can be customized





Thread Gauge Inspection Machine with Go No Go System for Accurate Bolt And Nut Quality Control in Industrial Production
thread checking machinebolt thread inspection


Wire thread inserting machine packagestainless steel screw thread inserts feeding



Thread Gauge Inspection Machine with Go No Go System for Accurate Bolt And Nut Quality Control in Industrial Production

Features:

  1. Utilizes a vibrating bowl feeder combined with a linear vibration track for smooth thread insert feeding.

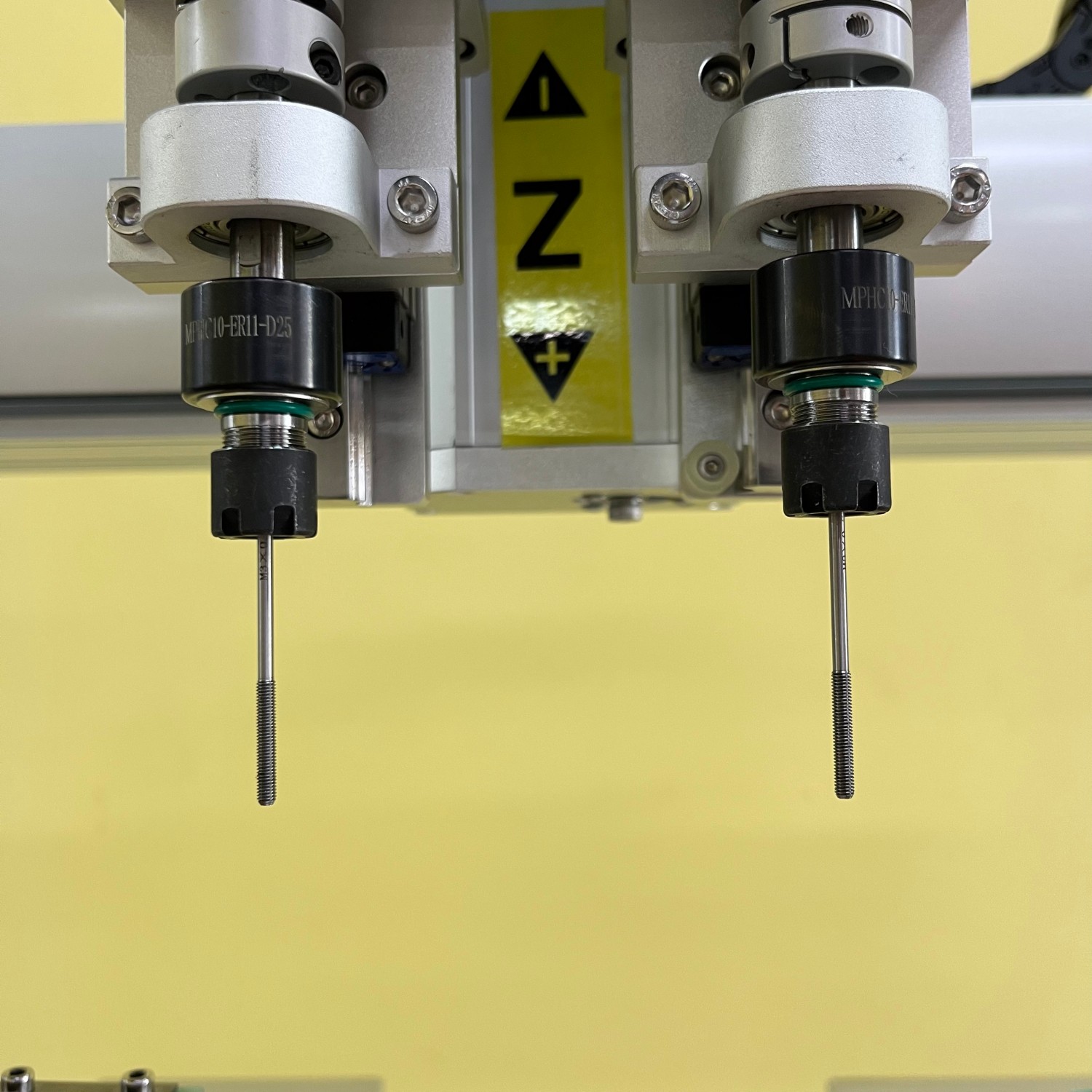

  2. Equipped with a servo-driven screwdriver system that supports both screw fastening and screw removal operations.

  3. The thread insert tang is automatically withdrawn after each installation.

  4. Offers high efficiency, completing each cycle in around 6 seconds—faster than the typical 10-second cycle of conventional machines.

  5. Optional features, including adhesive application and insertion depth monitoring, can be added according to specific production requirements.

  6. Can be configured as a dual thread insert installation and tightening system.

  7. The equipment can be tailored and configured to meet specific application requirements and manufacturing processes.


auto soldering machinepcb pin cutting machine公司 详情页2soldering robot
