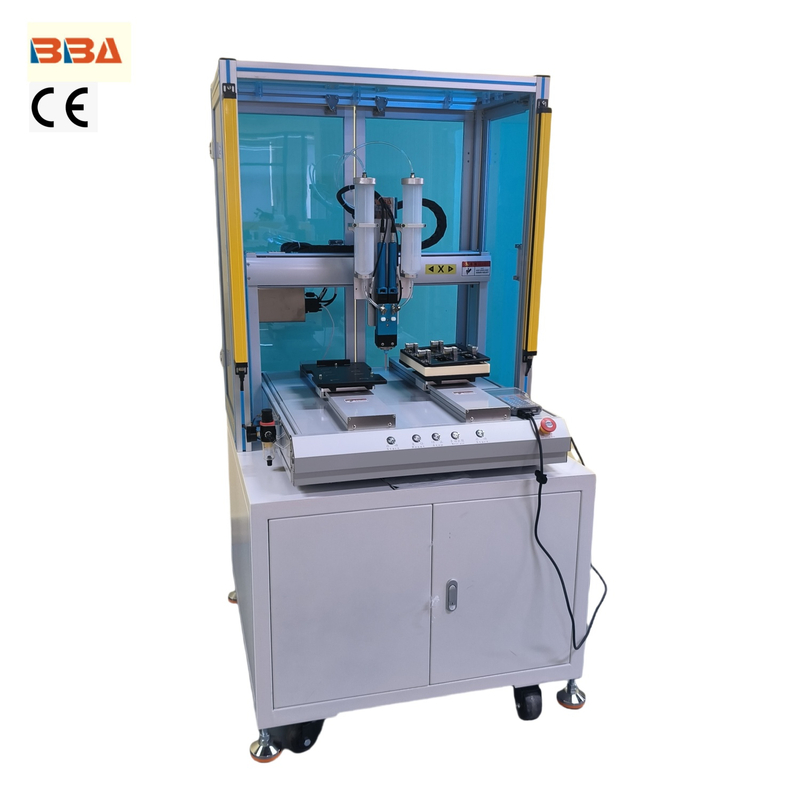

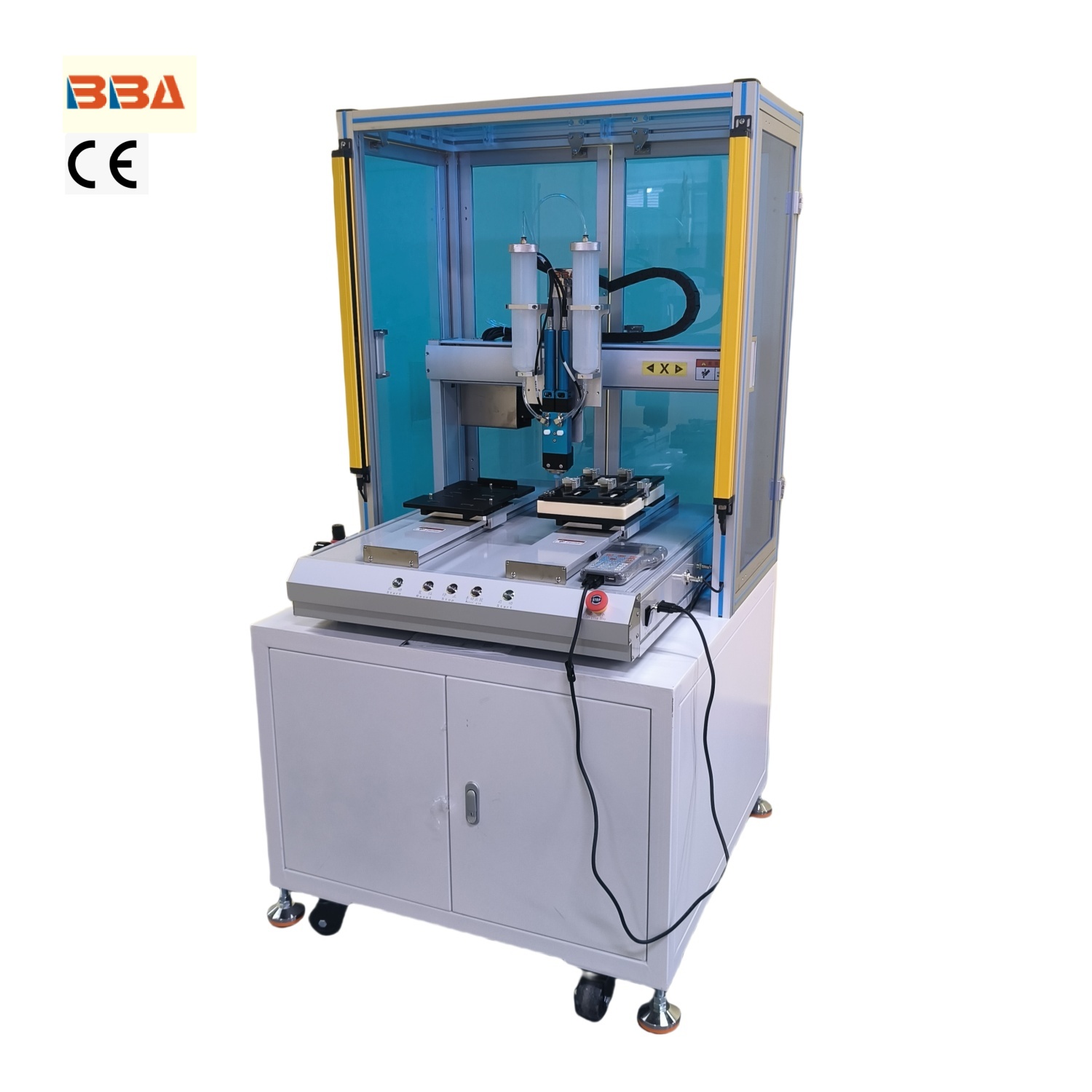

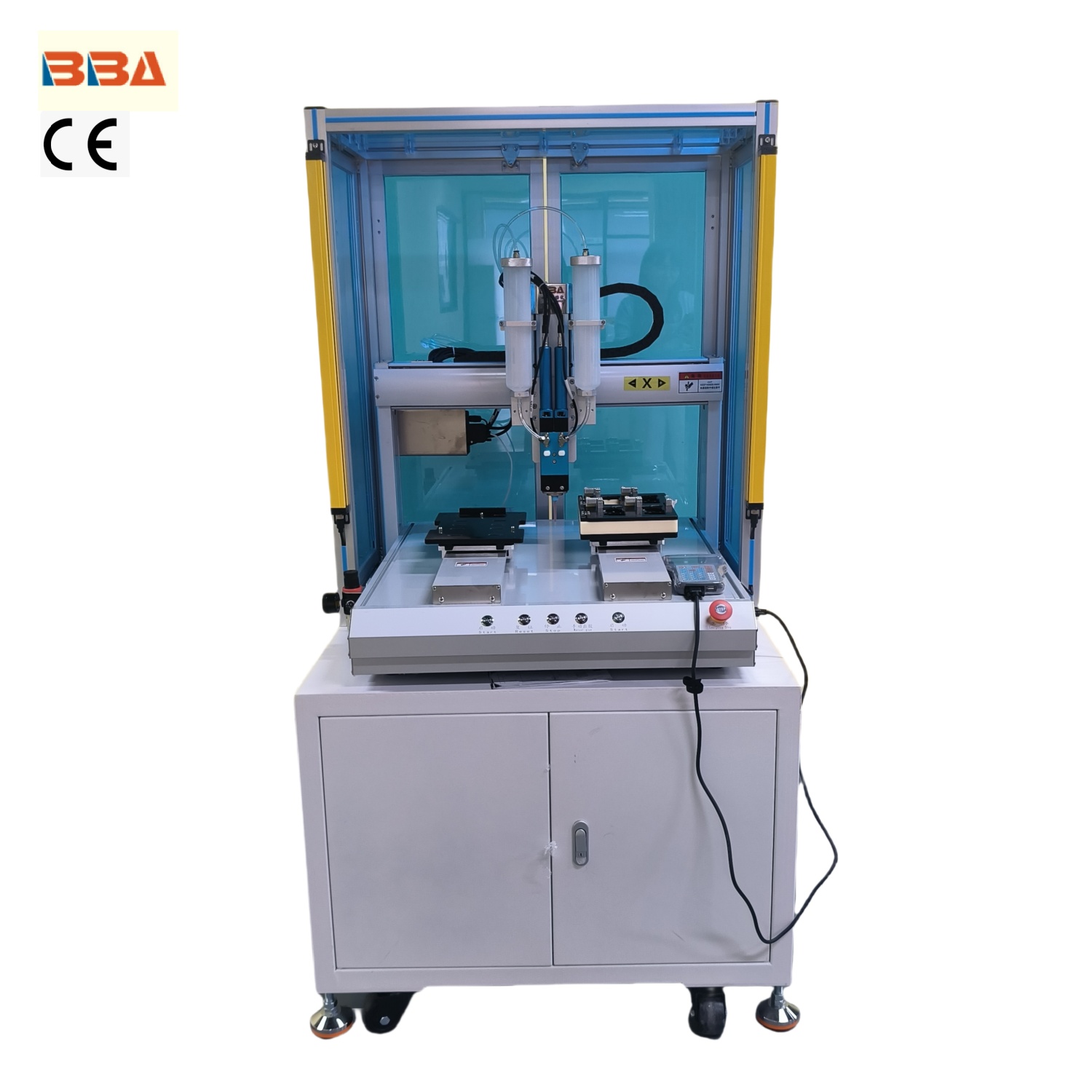

BBA-5331DJ
BBA
| Model | BBA-5331DJ |
| Working Area(mm) | 300*200*60 |
| Voltage | 110 / 220V 50HZ |
| Running accuracy(mm) | 0.01/Axis |
| Repeat accuracy(mm) | ±0.005/Axis |
| Operation | Teach pendant |
| Work condition | Temperature 0-40°C / Humidity 20-90% |
| Glue | One component |
| Dispensing Volume | 10-100g/5s(based on 1:1 glue proportion) |
| Dispensing Precision | Glue Amount±1%, Glue Proportion±1% |
| X/Y/Z Working Range | From 300*300*100mm to 600*600*100mm |
| XYZ Speed | Max 300mm/s |
| Patterns | Lines, Circles, Arcs, Continuous Paths, 3D Linear Interpolation |
| Input Pressure Range | 0.5-0.8MPa |
| Head Seal Pressure | MAX≤2.6Mpa |
| Adhesive Viscosity | <10000cps Discuss for >10000cps |
| Control | Industrial control board |
| Motion Control System | Intelligent Motion Control Chip |

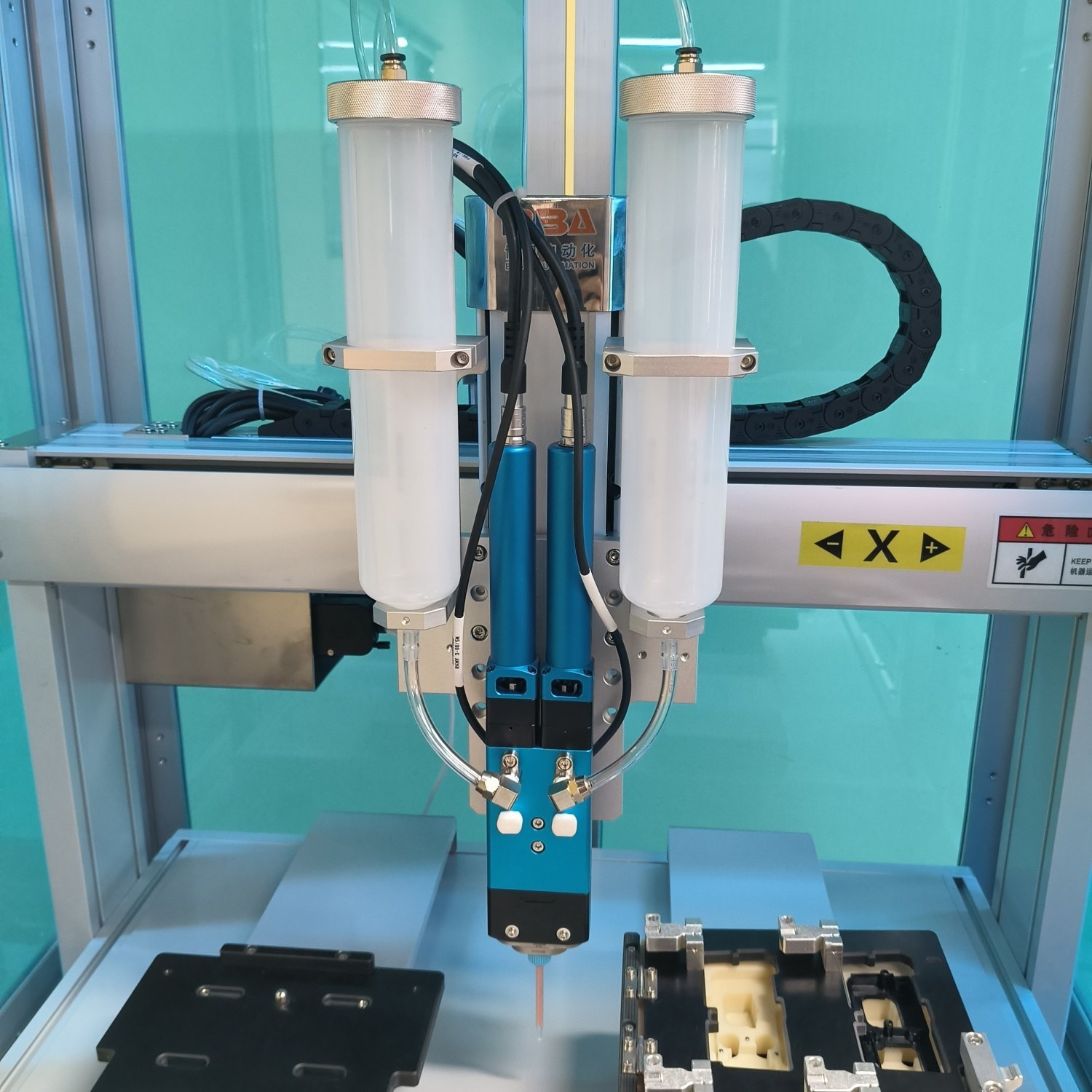

| Glue Injection Way | Pneumatic |
