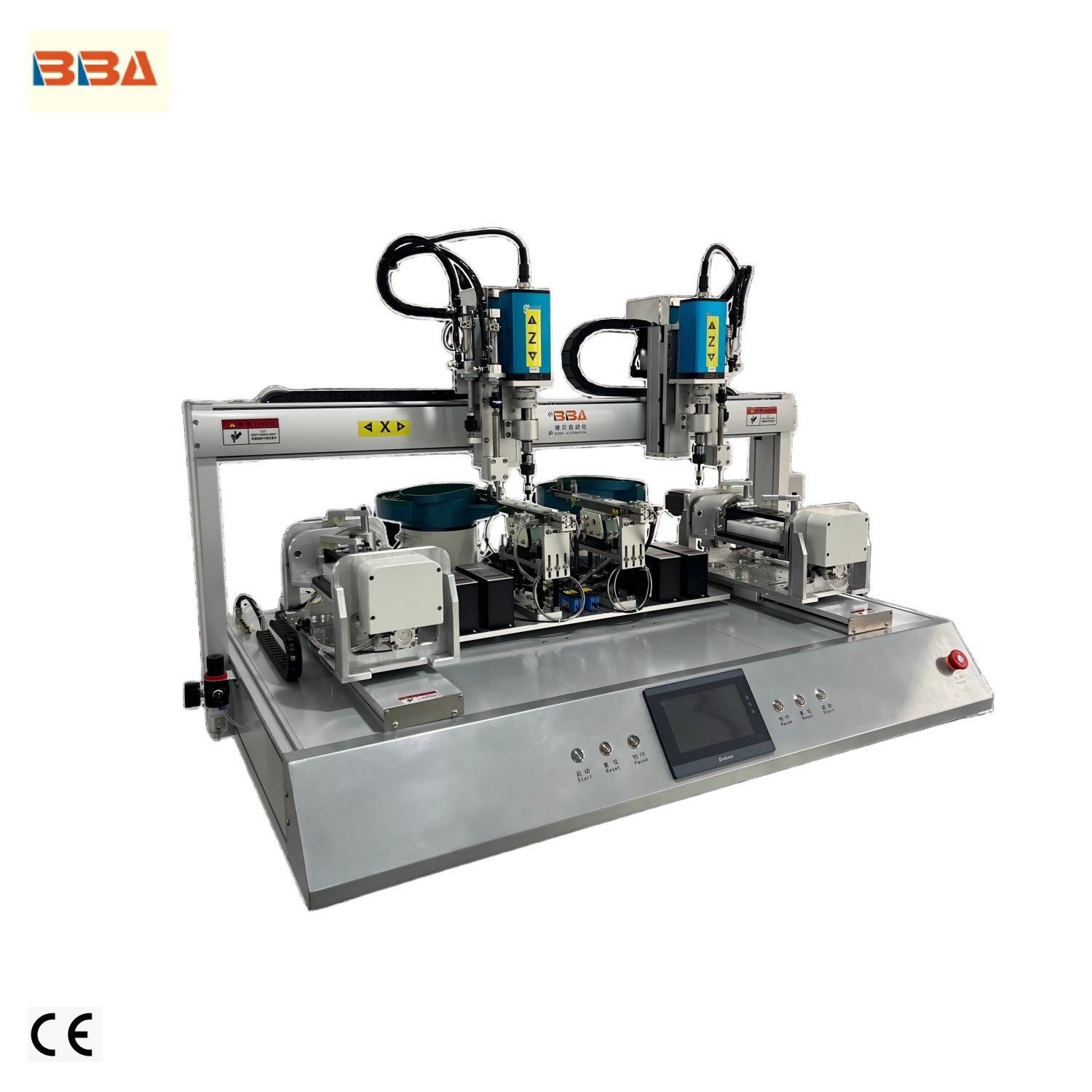

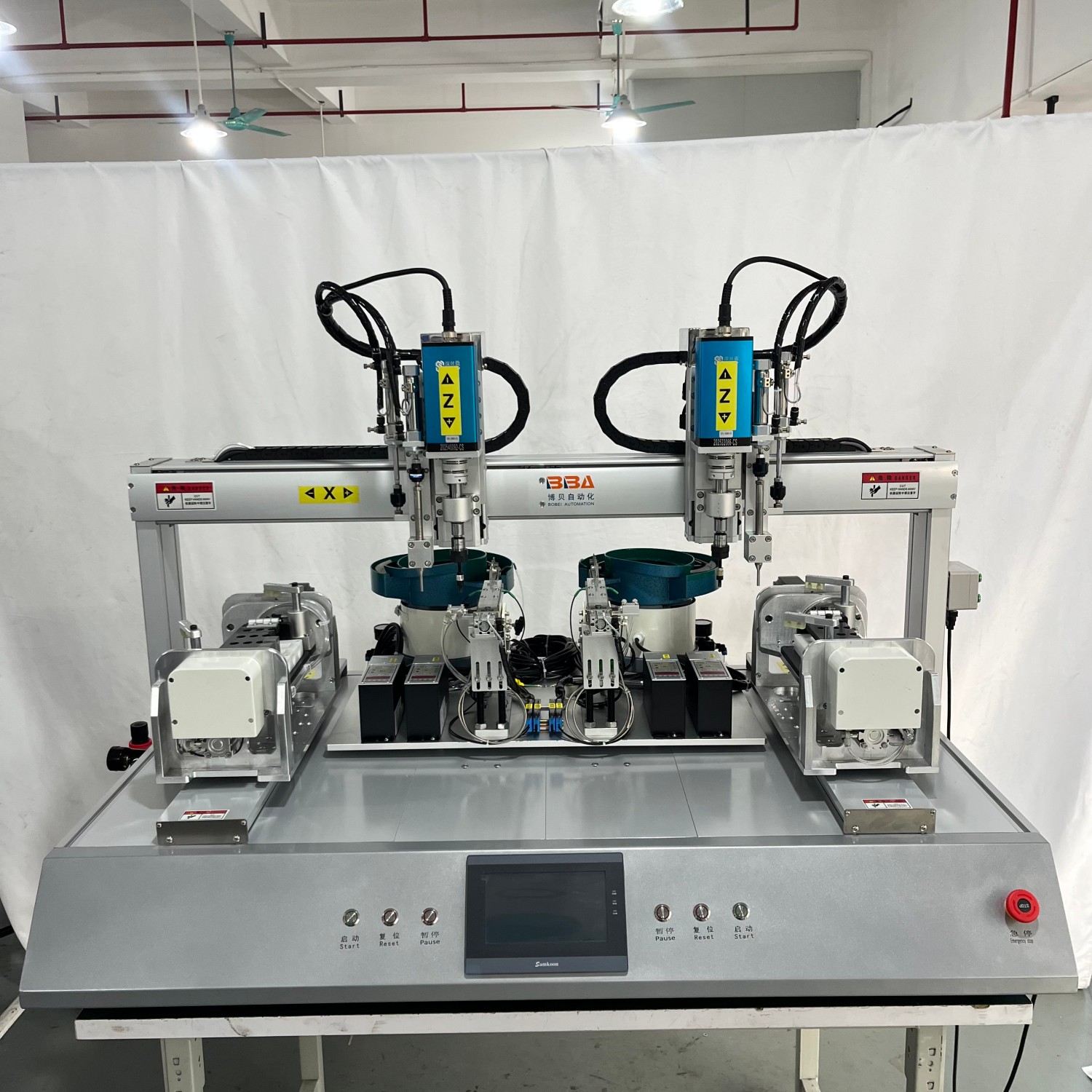

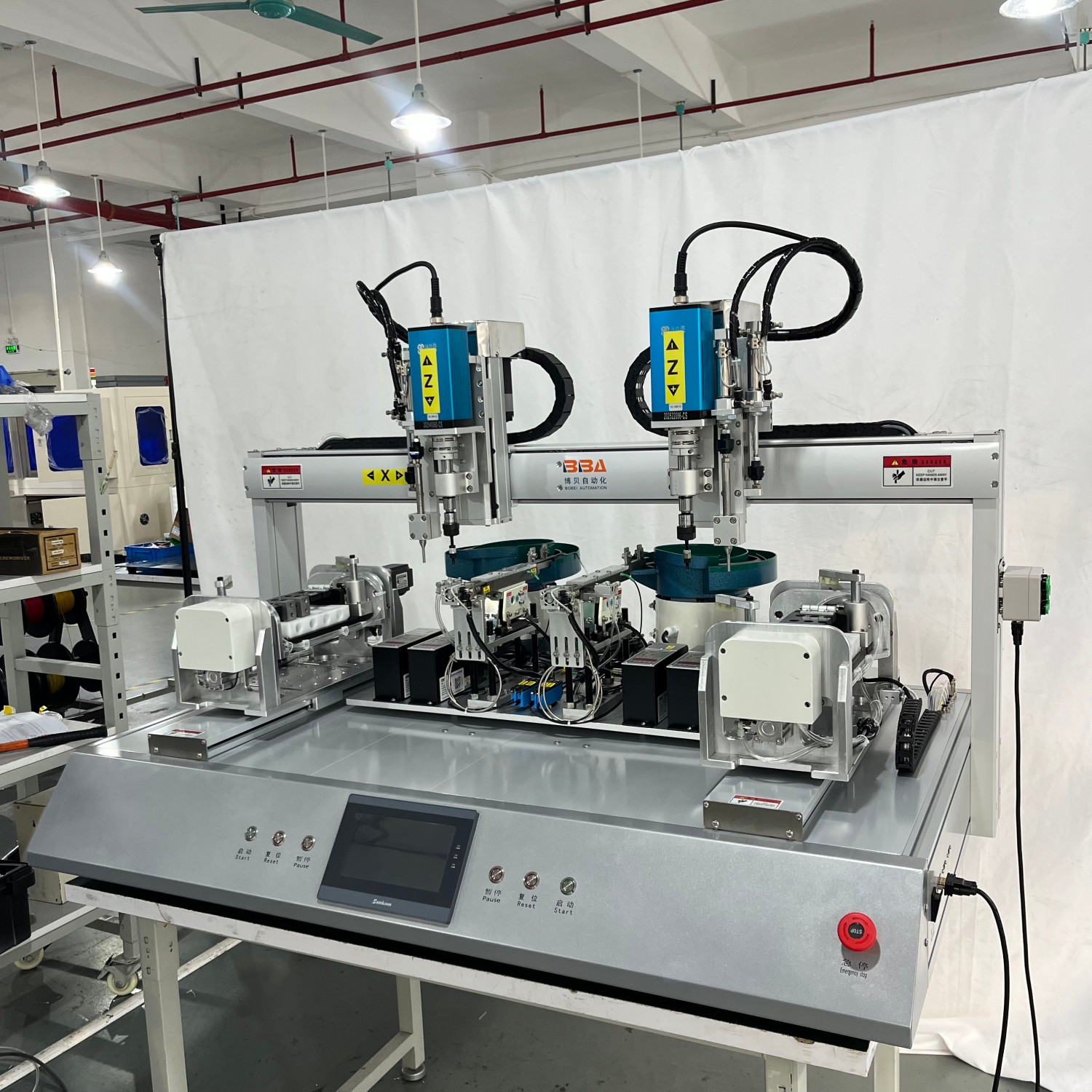

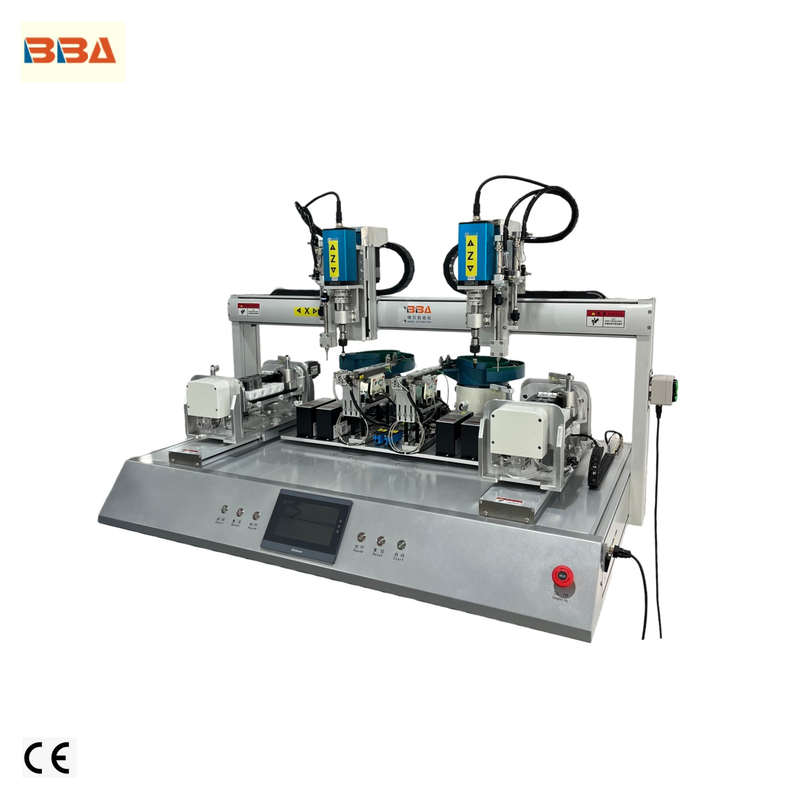

The Automatic Threaded Insert Machine is designed for precise insert installation in complex assemblies. Equipped with a vision-guided alignment system, it accurately positions threaded inserts even in irregular geometries and mixed component layouts. The machine improves insertion consistency, reduces positioning errors, and enhances overall production efficiency. By minimizing scrap and rework rates, it provides a reliable solution for manufacturers seeking stable, high-precision automated insert assembly.

Quantity:
Availability:





Inquire

Model:
BBA-6441YT
Brand:
BBA

Automatic Threaded Insert Machine for Vision-guided Insert Alignment in Complex Geometries And Mixed Component Types, Reducing Scrap And Rework Rates

Model	BBA-6441YT
Voltage	AC110/220V 50/60HZ
Power	1000W
Stroke	500400400100mm (XY*Z), can be customized
Movement speed	10-500mm/S
Position accuracy	±0.05mm/axis
Universal screw thread	M3-M10
Screw thread height	6-20mm
Screw thread material	Copper, Aluminum, Metal, Stainless steel
Screw thread type	Self-tapping thread, screw thread, steel thread
Transmission mode	Precision toothed belt+guide rail
Control panel	PLC+HMI screen
Conveying mode	Vibrating plate+direct vibrating track
Work efficiency	6S/pcs (include cutting thread tail), details depends on thread size
Air pressure	0.4-0.6Mpa
External port	RS232
Program capacity	12 groups, 20 points per group; can be customized
Work environment	Temperature: 5-40℃ Humidity: 20-90%
Weight	580kg
External machine size (LWH)	85012701560mm, can be customized
