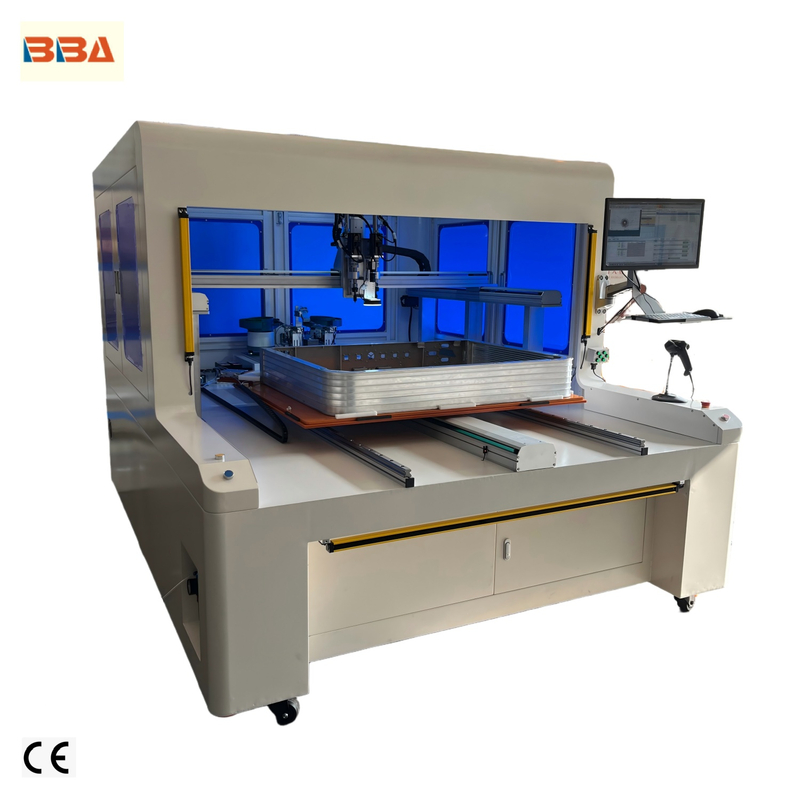

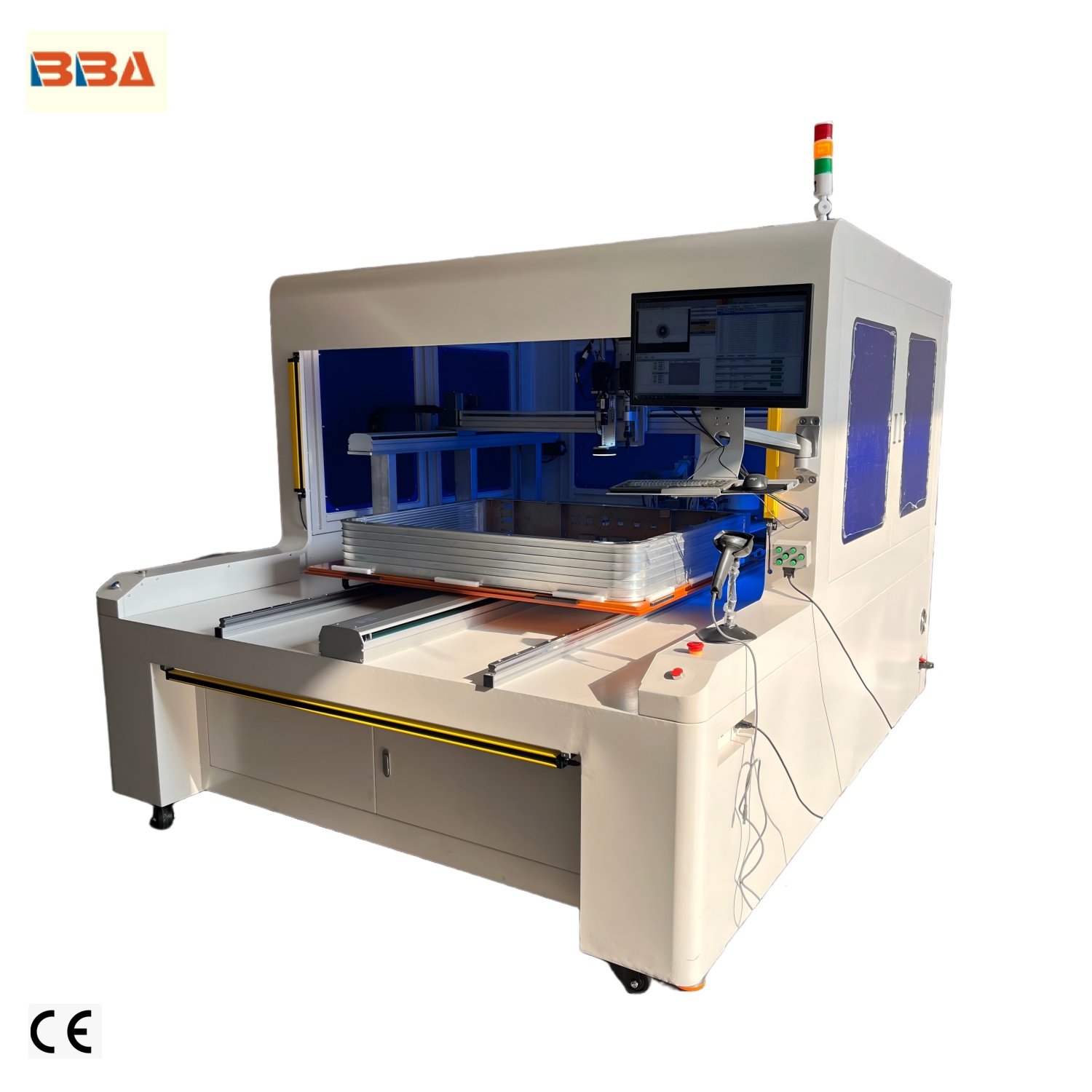

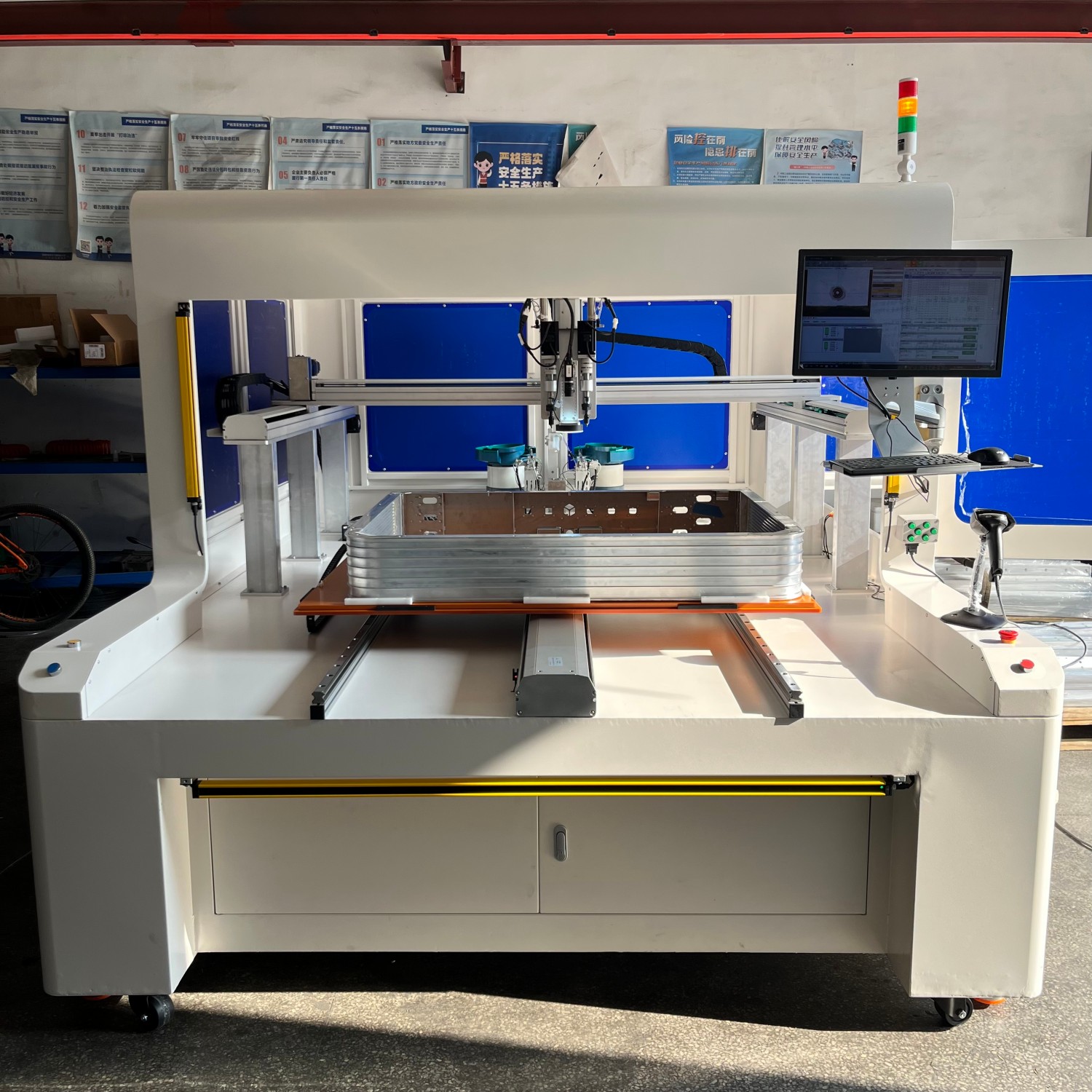

Professional Helicoil Insertion Tool for Industrial Assembly Thread Repair Fastener Installation And Manufacturing Applications

Professional Helicoil Insertion Tool for Industrial Assembly and Thread Repair, Precision Fastener Installation Equipment Designed for Manufacturing, Maintenance, Mechanical Engineering, and Heavy-Duty Production Applications with High Accuracy and Durability.
Availability:
Quantity:
Inquire

  • BBA-8441YT

  • BBA

Professional Helicoil Insertion Tool for Industrial Assembly Thread Repair Fastener Installation And Manufacturing Applications


ModelBBA-8441YT
VoltageAC110/220V 50/60HZ
Power1000W
Stroke500*400*400*100mm (X*Y*Z), can be customized
Movement speed10-500mm/S
Position accuracy±0.05mm/axis
Universal screw threadM3-M10
Screw thread height6-20mm
Screw thread materialCopper, Aluminum, Metal, Stainless steel
Screw thread typeSelf-tapping thread, screw thread, steel thread

Transmission mode

Precision toothed belt+guide rail
Control panelPLC+HMI screen
Conveying modeVibrating plate+direct vibrating track
Work efficiency6S/pcs (include cutting thread tail), details depends on thread size
Air pressure0.4-0.6Mpa
External portRS232
Program capacity12 groups, 20 points per group; can be customized
Work environmentTemperature: 5-40℃ Humidity: 20-90%
Weight580kg
External machine size (L*W*H)850*1270*1560mm, can be customized





Professional Helicoil Insertion Tool for Industrial Assembly Thread Repair Fastener Installation And Manufacturing Applications

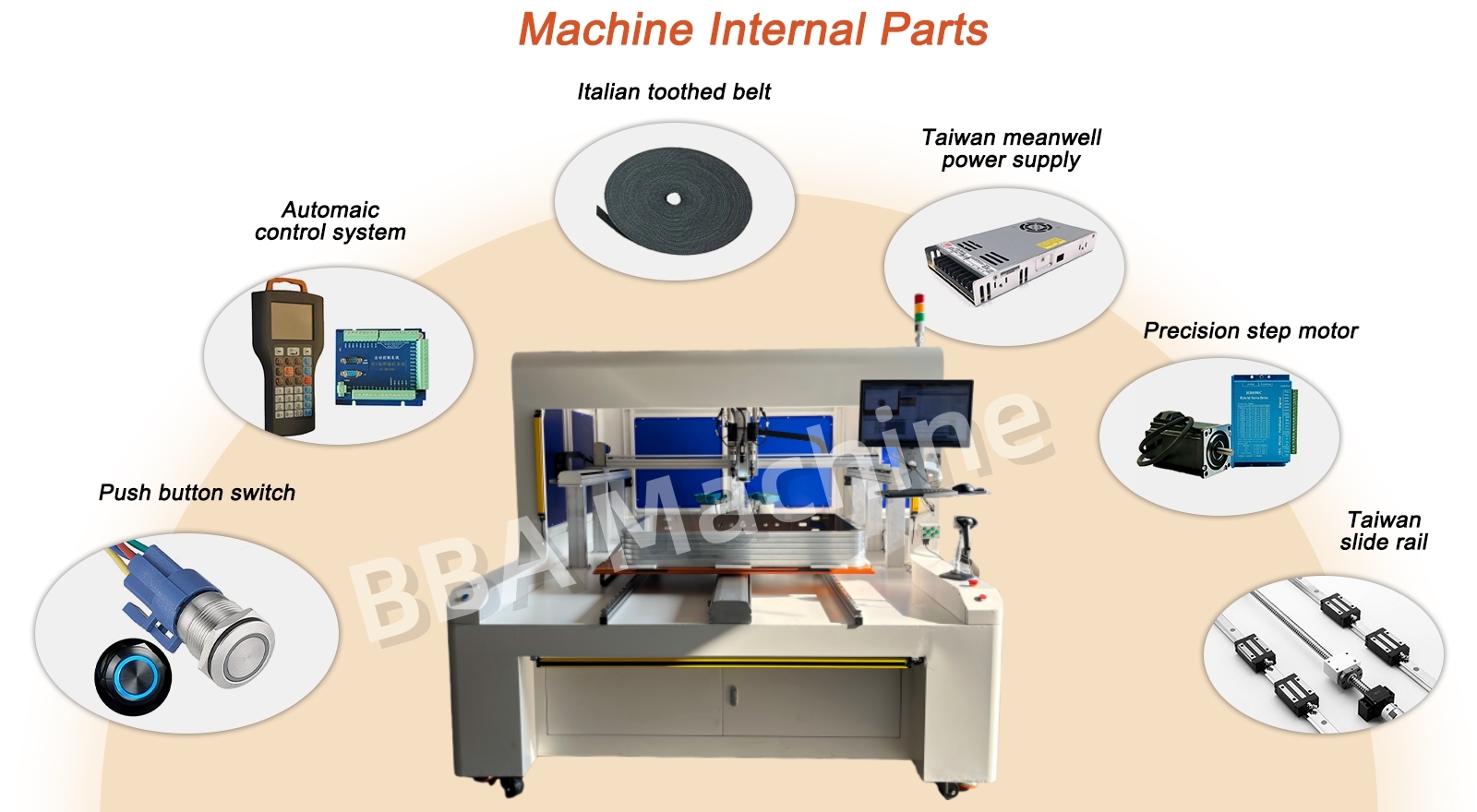

英文版

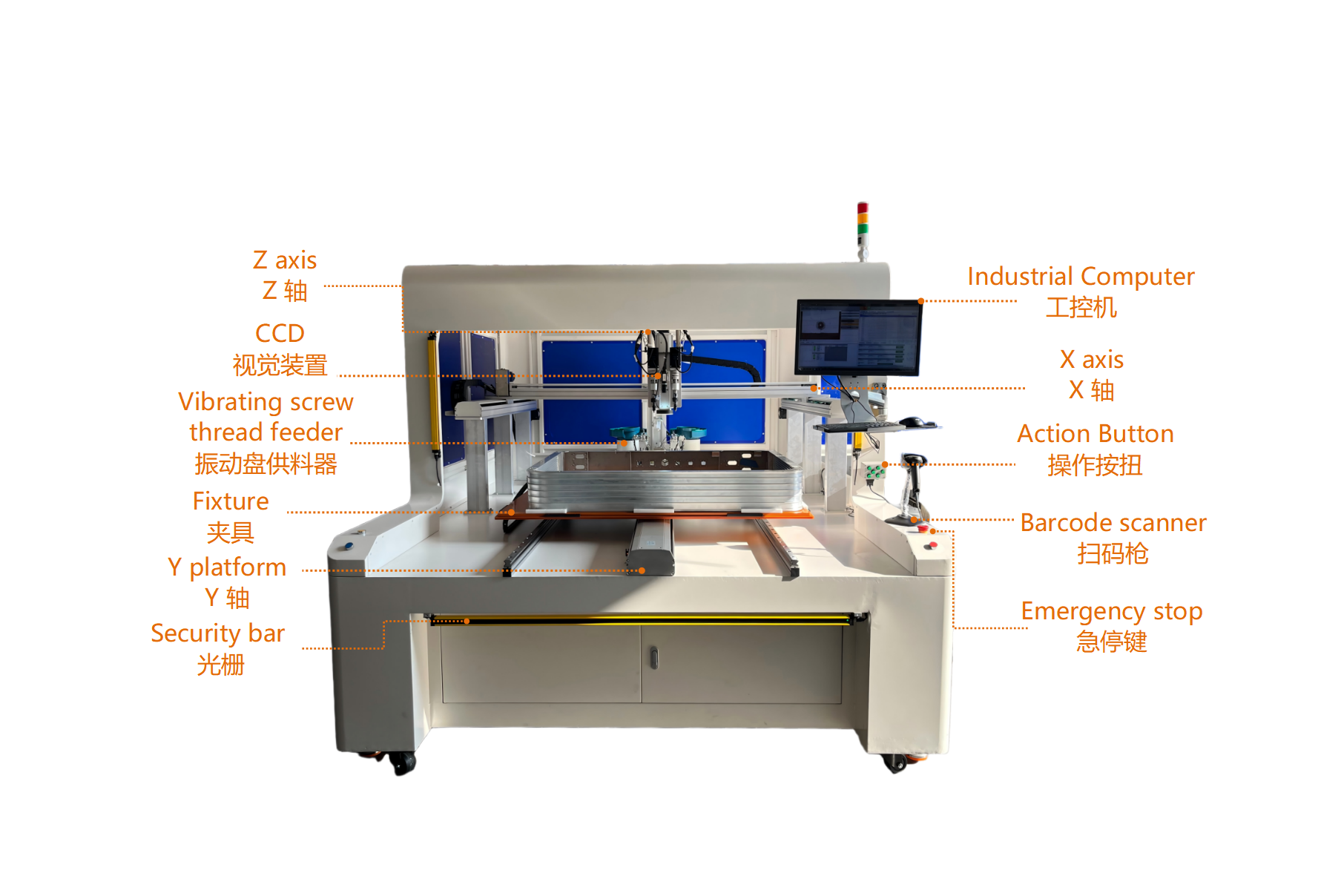

c706957b-34b7-495e-8a79-598d08252726




Wire thread inserting machine packagestainless steel screw thread inserts feeding



Professional Helicoil Insertion Tool for Industrial Assembly Thread Repair Fastener Installation And Manufacturing Applications

Features:

  1. Utilizes a vibrating bowl feeder combined with a linear vibration track for smooth thread insert feeding.

  2. Features a servo-controlled screwdriver capable of both insert installation and removal operations.

  3. Automatically retracts the thread insert tang after installation.

  4. High productivity with a cycle time of approximately 6 seconds per piece, compared to 10 seconds from typical alternatives.

  5. Optional integration of glue dispensing and insertion depth inspection functions is available.

  6. Can be configured as a dual thread insert installation and tightening system.

  8. Customized machine configurations can be developed according to specific application requirements.
