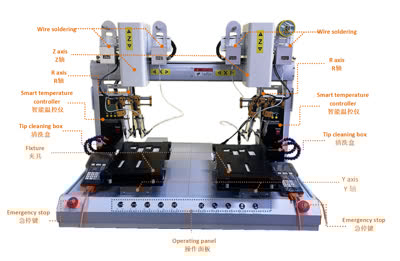

Robotic Soldering Machine with Auto Wire Feeding And Fume Extractor for USB Connector Soldering
In the manufacturing of USB connectors—where tiny pins and precise electrical connections are critical—the robotic soldering machine with auto wire feeding and fume extractor has become a game-changer. This equipment combines automation, precision, and safety to tackle the challenges of USB connector soldering, ensuring consistent joint quality, high throughput, and a healthy workspace for operators.
Robotic Precision: Perfect for USB Connector’s Tiny Pins
USB connectors, whether Type-A, Type-C, or Micro-USB, feature dense, miniaturized pins that demand micron-level soldering accuracy. The robotic system, guided by high-resolution vision positioning, achieves ±0.01mm positioning precision, targeting each pin without damaging adjacent components. Unlike manual soldering, which struggles with fatigue-induced errors, the robotic arm maintains stable pressure and temperature across thousands of soldering cycles. This consistency eliminates common defects like cold joints or pin bridging—costly issues in USB production that lead to connection failures. The robot also adapts to different USB models, with programmable paths that reduce setup time for product switches.
Auto Wire Feeding: Streamlining Efficiency for Mass Production
The integrated auto wire feeding system optimizes the soldering workflow for USB connectors. It automatically delivers pre-calibrated solder wire lengths to the tip, replacing manual wire handling that slows down production and causes waste. The system adjusts feed speed based on the USB pin size—delivering thinner wire for Micro-USB pins and thicker wire for Type-C power pins—ensuring uniform solder volume every time. This automation cuts cycle time per USB connector by 40% and reduces solder waste by 25%, making it ideal for high-volume manufacturing lines. It also frees operators from repetitive tasks, allowing them to focus on quality control.
| Product name | Applicable to multiple sectors |
| robotic soldering machine | Production Industries Welding |
Fume Extractor: Safety Meets Regulatory Compliance
Soldering USB connectors generates flux fumes that contain harmful particles, posing health risks. The built-in fume extractor solves this by capturing fumes at the source through a precision nozzle positioned near the soldering tip. Its multi-layer filtration system removes 99% of toxic substances, releasing clean air back into the workshop. This not only protects operators but also complies with global occupational health standards. Additionally, the extractor prevents fume residue from settling on USB connector surfaces, avoiding contamination that could affect insulation or appearance. For manufacturers, this safety feature reduces workplace accidents and related downtime.
In summary, the fusion of robotic accuracy, auto wire feeding efficiency, and fume extractor safety makes this machine indispensable for USB connector soldering. It addresses the unique demands of small-component soldering, balancing productivity with quality and operator well-being—key to staying competitive in the fast-paced electronics industry.
