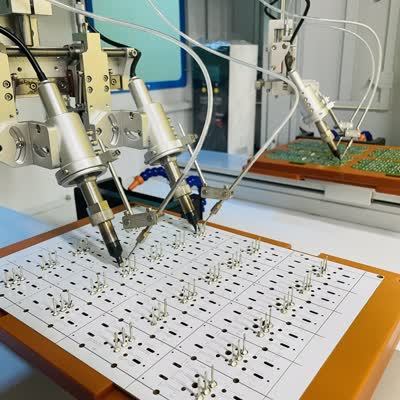

Welding Robot Cartesian Style with Fume Extractor, Ideal for USB Connector Soldering
In 3C electronics manufacturing, USB connector soldering requires a balance of precision motion, operational safety, and consistent quality—especially for high-density USB-C ports and miniaturized connectors. The welding robot Cartesian style with fume extractor addresses these core demands, merging the structural stability of Cartesian style mechanics, the safety of integrated fume extractor technology, and robotic precision to deliver reliable soldering results for USB-A, USB-C, and Micro-USB assembly.
Cartesian Style: Stable Precision for Intricate USB Soldering
The Cartesian style design is the foundation of the robot’s accuracy in USB connector soldering. Its gantry-based XYZ motion system ensures minimal vibration during high-speed operations, achieving ±0.01mm positional accuracy—critical for targeting tiny solder pads (as small as 0.2mm) on USB connectors. Unlike articulated robots, the Cartesian structure offers predictable, linear movement paths, simplifying programming for repetitive USB soldering tasks such as pin array soldering or shield connector attachment. This stability also supports continuous high-volume production, with the robot completing up to 120 solder joints per minute while maintaining uniform quality across every USB connector. Its open, modular design also allows easy integration with conveyor systems, fitting seamlessly into existing 3C manufacturing lines.
Fume Extractor: Safe, Clean Operation for Workshop and Components
The integrated fume extractor solves a key pain point in USB connector soldering: harmful solder fumes. These fumes not only pose health risks to operators but also contaminate sensitive USB components, leading to signal interference or corrosion. The extractor captures over 99% of fumes at the source using a high-efficiency filtration system, including activated carbon and HEPA filters, to remove toxic flux residues and metal particulates. With a noise level below 60dB, it operates without disrupting workshop workflows, while its compact integration with the Cartesian robot eliminates the need for separate fume extraction equipment. For manufacturers adhering to global occupational health standards, this feature ensures compliance while protecting both workers and the integrity of USB connectors.
Product name
Applicable industries
robotic soldering machine
Electro-Acoustic
Robotic Adaptability: Streamlining USB Production Workflows
Optimized for USB connector soldering, the robotic system offers versatile adaptability to diverse production needs. It supports adjustable soldering temperatures (250°C–450°C) and dwell times, matching the heat requirements of different USB components—from heat-sensitive plastic housings to metal connector pins. The intuitive control panel allows operators to store parameters for 50+ USB product models, enabling quick changeovers between smartphone, tablet, and power bank USB assembly lines. Built-in vision recognition further enhances precision by automatically compensating for minor PCB placement deviations, reducing defects like solder bridges or cold joints.
In summary, the fusion of Cartesian style stability, fume extractor safety, and robotic precision makes this equipment indispensable for USB connector soldering. It delivers the accuracy, operational safety, and efficiency needed to meet the strict quality standards of modern 3C electronics manufacturing, ensuring reliable USB connections while protecting workshop environments.
