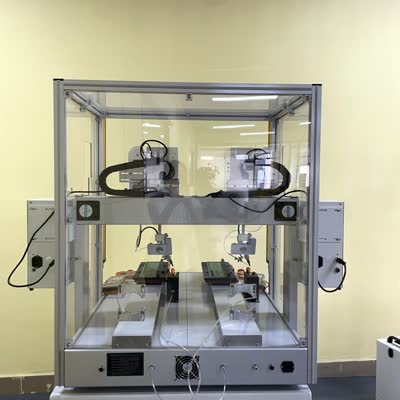

Advanced Benchtop Welding Robot for PCB Assembly with Dual Solder Head
For small-to-medium batch PCB assembly operations, R&D labs, and precision electronics workshops, equipment that balances compactness, efficiency, and advanced functionality is essential. The advanced benchtop welding robot for PCB assembly with dual solder head meets this demand perfectly, integrating the space-saving advantage of benchtop design, the high efficiency of dual solder head, and advanced control technology to deliver consistent, high-quality welding results for various PCB components.
Benchtop Design: Space-Saving for Versatile Workspaces
The benchtop configuration is a standout feature tailored for space-constrained environments. With a compact footprint (typically 40x55cm) and lightweight structure (under 28kg), it fits easily on standard workbenches, eliminating the need for dedicated floor space required by large industrial welding lines. This makes it ideal for small PCB assembly workshops, electronics repair centers, and R&D facilities developing new electronic products. Its portability also allows flexible repositioning to adapt to different welding tasks—from soldering tiny PCB components like resistors and capacitors to assembling complex PCB modules. Anti-slip feet and a stable base ensure vibration-free operation, preventing welding errors caused by instability.
Dual Solder Head: Doubling Efficiency for PCB Assembly
The dual solder head design is the core driver of efficiency in PCB assembly. Unlike single-head robots, it can simultaneously weld two different components on the same PCB or alternate between multiple welding points, boosting work efficiency by 80%–100%. Each solder head features independent temperature control (200°C–480°C) and adjustable welding parameters, enabling it to handle different types of solder joints and PCB materials—from heat-sensitive flexible PCBs to rigid FR-4 PCBs. For PCB boards with dense component layouts, the dual heads can work in coordination to complete welding tasks in half the time of single-head equipment, significantly improving productivity for small-to-medium batch production.
| Product name | Applicable industries |
| robotic soldering machine | Electro-Acoustic |
Advanced Features: Enhancing Precision and Usability
The advanced capabilities of the robot elevate PCB assembly quality and usability. Equipped with high-precision motion control systems, it achieves ±0.01mm positional accuracy, ensuring precise targeting of tiny solder pads (as small as 0.2mm) without causing solder bridges or cold joints. The intuitive touchscreen control panel allows operators to program welding paths and parameters easily, with the ability to store parameters for 60+ PCB models for quick recall. Built-in vision recognition (optional) further enhances accuracy by automatically correcting minor PCB placement deviations. Additionally, the robot supports automatic tin feeding, reducing manual intervention and ensuring consistent tin supply for each solder joint.
In summary, the fusion of benchtop compactness, dual solder head efficiency, and advanced precision control makes this robot indispensable for PCB assembly in small-to-medium scale operations. It delivers the space-saving, high-efficiency, and reliable solutions needed to meet the demands of modern electronics manufacturing.
